NSX160/250 Trip Unit 4P 4D 160A MicroLogic 4.2
Schneider Electric

NSX160/250 Trip Unit 4P 4D 160A MicroLogic 4.2

Ideal part number SCHC1644V160 Manufacturer number C1644V160 Barcode 3606481993861
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX160/250 Trip Unit, 4 poles 4D 160A, MicroLogic 4.2

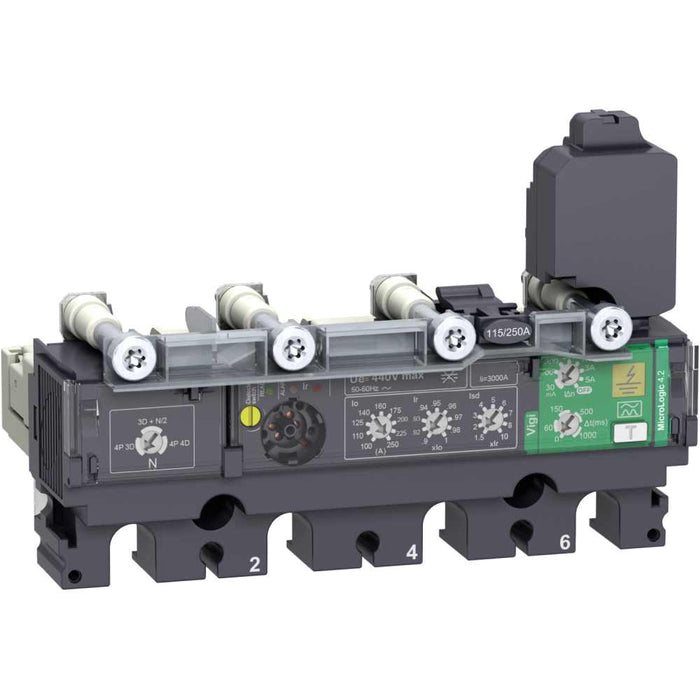

This MicroLogic 4.2 is a 4 poles 4d electronic trip unit used on ComPacT NSX 160/250 circuit breakers. This 160A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 4.2 Vigi trip unit offers an integrated adjustable earth-leakage protection. MicroLogic 4.2 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. An earth leakage pre-alarm can be remotely available by installing the optional SDx module (LV429532). This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
160 A
Number of poles
4
Short-circuit release function
Delayed
Overload release current setting
64…160 A
