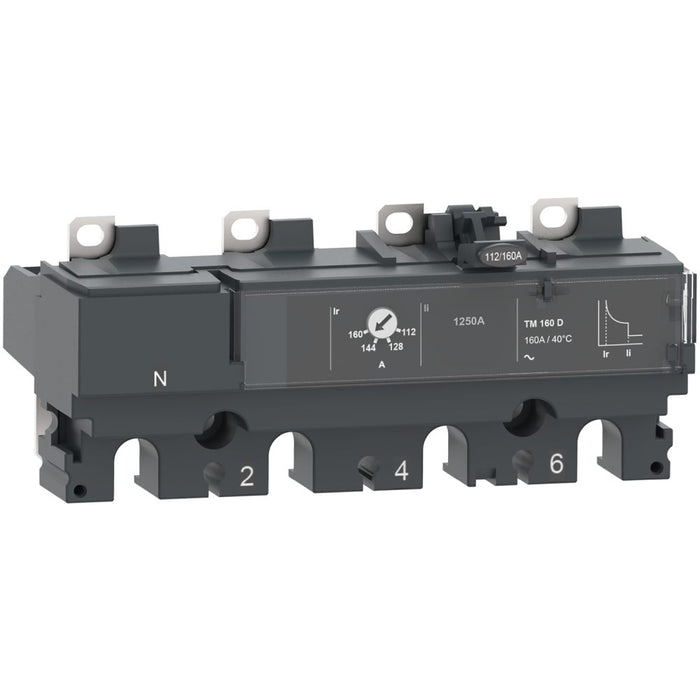

NSX160 Trip Unit 4P 3D 160A Thermal Magnetic TM160D
Schneider Electric

NSX160 Trip Unit 4P 3D 160A Thermal Magnetic TM160D

Ideal part number SCHC166TM160 Manufacturer number C166TM160 Barcode 3606482000018
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX160 Trip Unit, 4 poles 3D 160A, Thermal Magnetic TM160D

This TM160D is 4 poles 3d thermal-magnetic trip unit used on ComPacT NSX 160 circuit breakers. This 160A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
160 A
Number of poles
4
Short-circuit release function
Undelayed
Overload release current setting
112…160 A
