NSX125 DC PV Circuit Breaker 4P 125A 10kA/1000VDC

NSX125 DC PV Circuit Breaker 4P 125A 10kA/1000VDC

by Schneider Electric

Product Details

NSX125 DC PV Circuit Breaker 4 poles 125A, 10kA/1000VDC

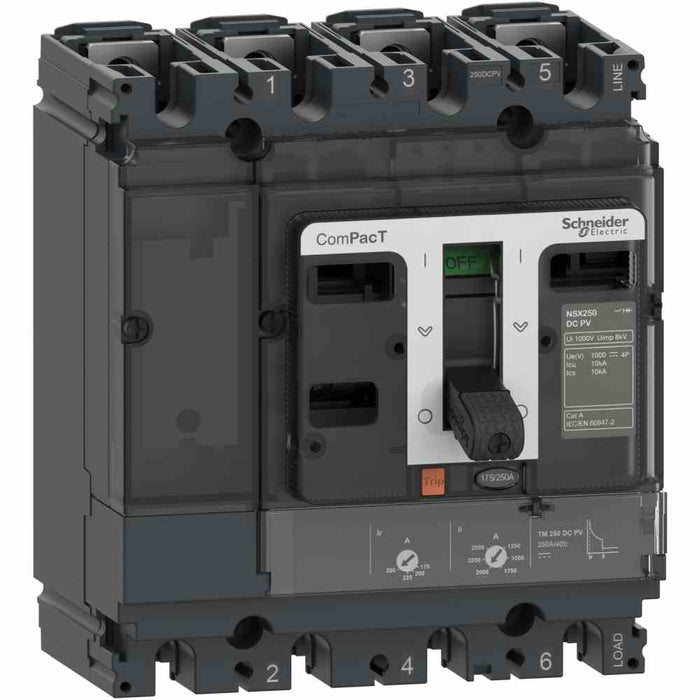

ComPacT NSX 125F DC PV is a 4 poles circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for photovoltaic applications. The breaking capacity (Icu) is 10kA at 1000VDC with 4 poles series. The rated current is 125A and the operational voltage is 1000VDC. The dimensions are 161mm x 140mm x 186mm. It is compliant with international standard EN/IEC 60947.
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
125 A
Number of poles
4
Overload release current setting
87.5…125 A
Number of auxiliary contacts as change-over contact
5
Rated voltage
1000 V
Degree of protection
IP40 (Ip: IP40)
Position of connection for main current circuit
Front side
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Type of control element
Toggle
With switched-off indicator
yes
Adjustment range undelayed short-circuit release
1250 A
Suitable for DIN rail
yes (Top hat rail mounting: yes)
Integrated earth fault protection
no
Motor drive optional
yes
Device construction
Built-in device fixed built-in technique
DIN rail
yes (Top hat rail mounting optional: yes)
Complete device with protection unit
yes
