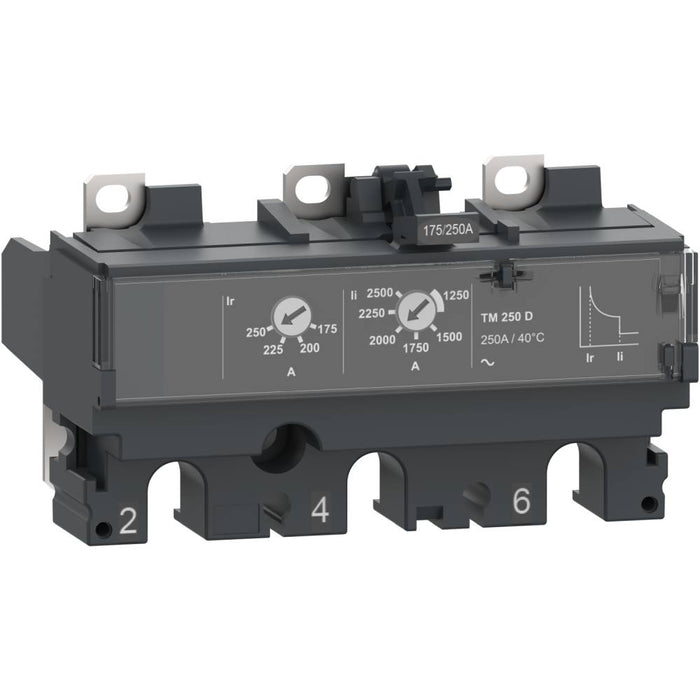

NSX250 Trip Unit 3P Thermal Magnetic 250A TM250D
Schneider Electric

NSX250 Trip Unit 3P Thermal Magnetic 250A TM250D

Ideal part number SCHC253TM250 Manufacturer number C253TM250 Barcode 3606481999610
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX250 Trip Unit, 3 poles, Thermal Magnetic 250A TM250D

This TM250D is a 3 poles 3d thermal-magnetic trip unit used on ComPacT NSX 250 circuit breakers. This 250A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
250 A
Number of poles
3
Short-circuit release function
Undelayed
Overload release current setting
175…250 A
