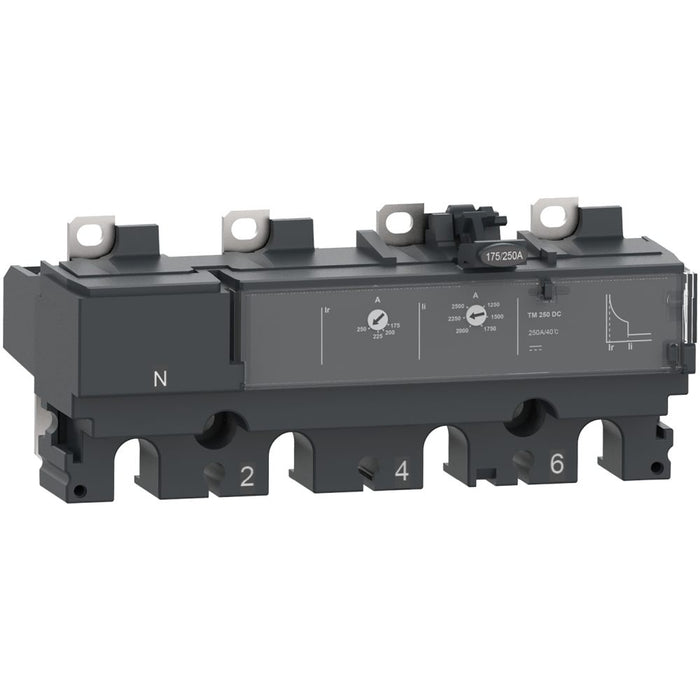

NSX250 Trip Unit 4P 200A Thermal-Magnetic TM200DC
Schneider Electric

NSX250 Trip Unit 4P 200A Thermal-Magnetic TM200DC

Ideal part number SCHC254TM200D Manufacturer number C254TM200D Barcode 3606481994974
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX250 Trip Unit, 4 poles 200A, Thermal-Magnetic TM200DC

TM200DC is a 4 poles thermal-magnetic trip unit used on ComPacT NSX 250DC circuit breakers. This 200A rating thermal-magnetic trip unit is an optimum choice for all distribution applications. It embeds an adjustable thermal overload protection and a fixed magnetic protection against short-circuits. The rated current is 200A and the operational voltage is 750VDC. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Technical specifications

Rated permanent current Iu
200 A
Number of poles
4
Short-circuit release function
Undelayed
Overload release current setting
140…200 A
