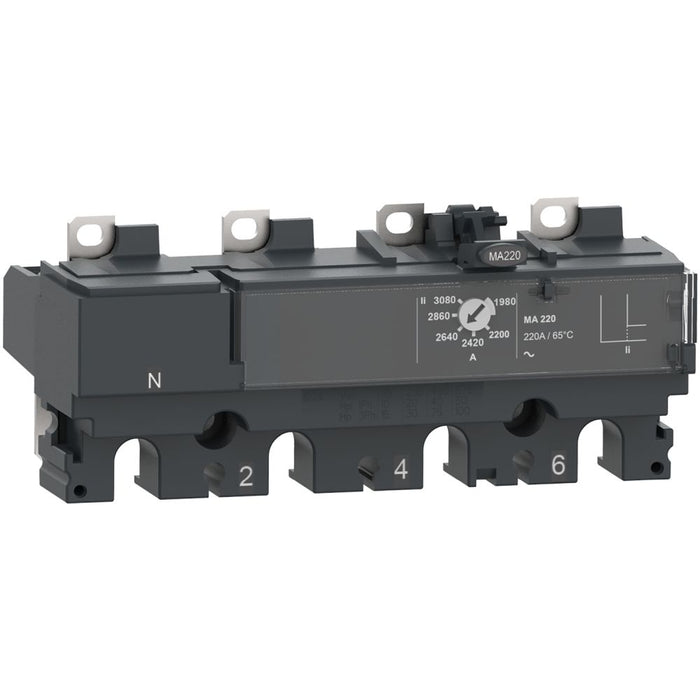

NSX250 Trip Unit 4P Magnetic 3D 220A MA220
Schneider Electric

NSX250 Trip Unit 4P Magnetic 3D 220A MA220

Ideal part number SCHC256MA220 Manufacturer number C256MA220 Barcode 3606482000667
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX250 Trip Unit, 4 poles, Magnetic 3D 220A MA220

This MA220 is a 4 poles 4d magnetic trip unit used on ComPacT NSX 250 circuit breakers. This 220A rating magnetic trip unit is an optimum choice for motor protection applications. It embeds an adjustable instantaneous magnetic protection against short-circuits. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
220 A
Number of poles
4
Short-circuit release function
Undelayed
