NSX250N Circuit Breaker 1P 160A 25kA/240VAC
Schneider Electric

NSX250N Circuit Breaker 1P 160A 25kA/240VAC

Ideal part number SCHC25N1TM160 Manufacturer number C25N1TM160 Barcode 3606481995940
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX250N Circuit Breaker, 1 pole 160A 25kA/240VAC

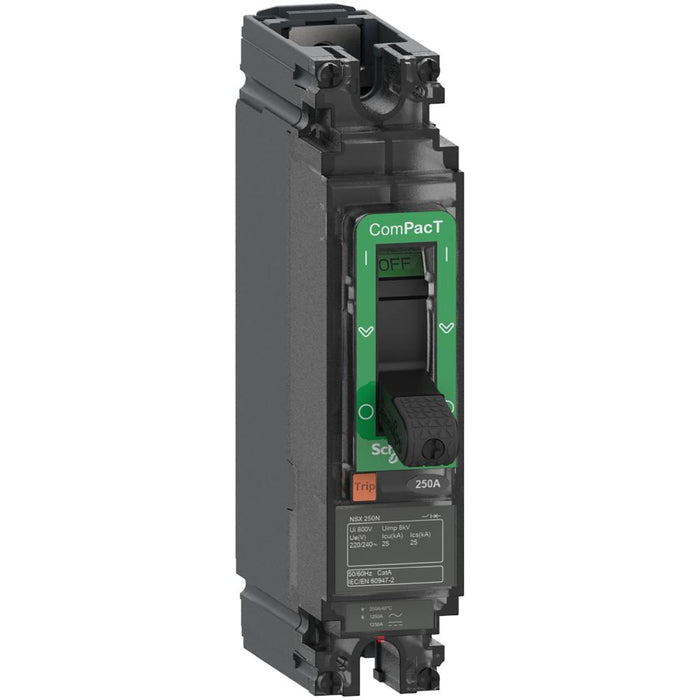

ComPacT NSX 250N is a complete 1 poles fixed circuit breaker designed to optimize space and breaking capacity. It is an optimal choice for all standard and specific applications. The breaking capacity (Icu) is 25kA rms at 240VAC 50/60Hz. The operational voltage is 277VAC 50/60Hz. This product embeds a 160A rating thermal-magnetic trip unit (TMD). TMD trip unit provides an fixed thermal overload protection and a fixed magnetic protection. The dimension is 161mm x 35mm x 86mm (H x W x D). It is compliant with international standards (EN/IEC 60947), CCC, EAC and marine specifications.

Technical specifications

Rated permanent current Iu
160 A
Number of poles
1
Overload release current setting
220…250 A
Number of auxiliary contacts as change-over contact
0
Rated voltage
277 V
Degree of protection
IP40 (Ip: IP40)
Position of connection for main current circuit
Front side
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Type of control element
Toggle
With switched-off indicator
no
Adjustment range undelayed short-circuit release
1250 A
Suitable for DIN rail
no (Top hat rail mounting: no)
Integrated earth fault protection
no
Motor drive optional
yes
Device construction
Built-in device fixed built-in technique
DIN rail
no (Top hat rail mounting optional: no)
Complete device with protection unit
yes
