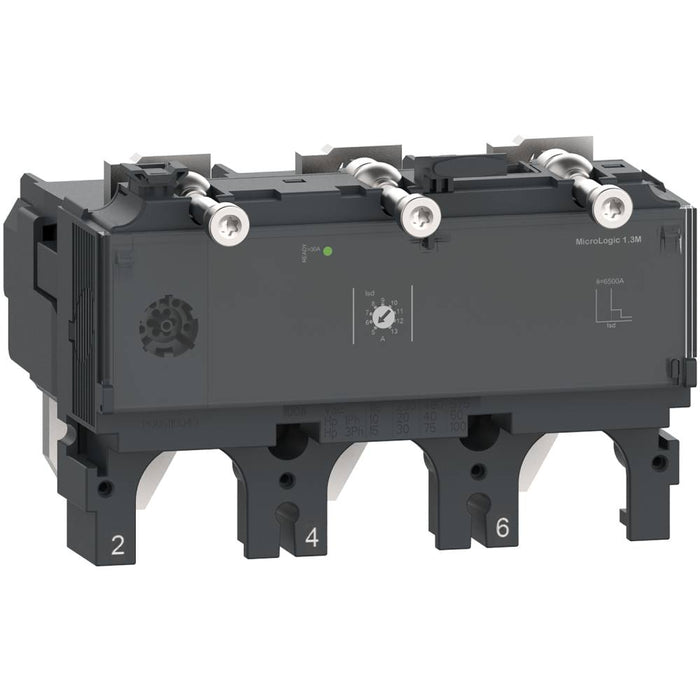

NSX400/630 Trip Unit 3P 320A MicroLogic 1.3M
Schneider Electric

NSX400/630 Trip Unit 3P 320A MicroLogic 1.3M

Ideal part number SCHC4031M320 Manufacturer number C4031M320 Barcode 3606482003088
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX400/630 Trip Unit, 3 poles, 320A, MicroLogic 1.3M

This MicroLogic 1.3 M is a 3 poles 3d electronic trip unit used on ComPacT NSX 400/630 circuit breakers. This 320A rating electronic trip unit is an optimum choice for motor protection applications. It provides an adjustable short-time protection and a fixed instantaneous protection against short-circuits. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
320 A
Number of poles
3
Short-circuit release function
Delayed
