NSX400F DC Circuit Breaker 3P 400A 36kA/750VDC
Schneider Electric

NSX400F DC Circuit Breaker 3P 400A 36kA/750VDC

Ideal part number SCHC40F3TM400D Manufacturer number C40F3TM400D Barcode 3606481995018
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX400F DC Circuit Breaker 3 poles 400A, 36kA/750VDC

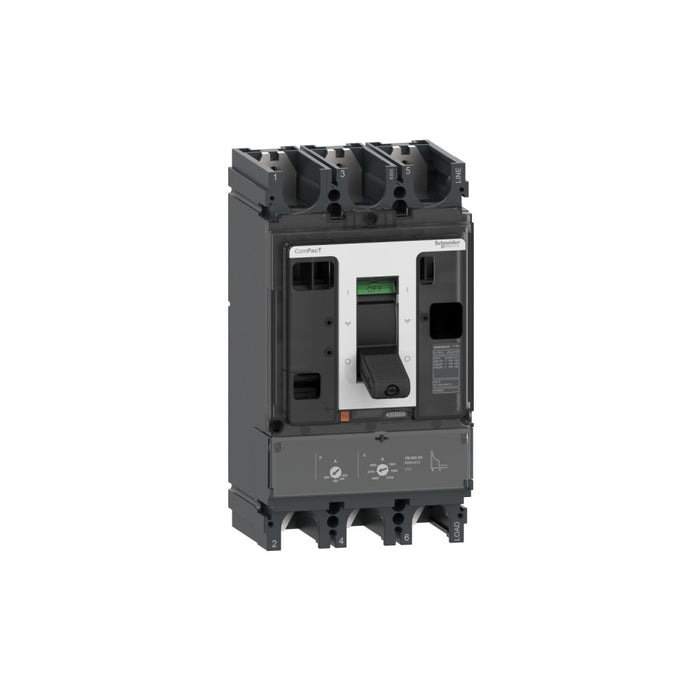

ComPacT NSX 400F DC is a complete 3 poles fixed circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 36kA rms at 750VDC. The operational voltage is 750VDC. This product embeds a 400A rating thermal-magnetic trip unit (TM-DC). TM-DC trip unit provides an adjustable thermal overload protection and an adjustable magnetic protection. This 4 poles version (255mm x 140mm x 110mm) comes with a variety of optional functions and accessories. It is compliant with international standards (IEC 60947), CCC, EAC and marine specifications.

Technical specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
400 A
Number of poles
3
Overload release current setting
280…400 A
Number of auxiliary contacts as change-over contact
5
Rated voltage
750 V
Degree of protection
IP30 (Ip: IP30)
Position of connection for main current circuit
Front side
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Type of control element
Toggle
With switched-off indicator
yes
Adjustment range short-term delayed short-circuit release
1000…2000 A
Suitable for DIN rail
yes (Top hat rail mounting: yes)
Integrated earth fault protection
yes
Motor drive optional
yes
Device construction
Built-in device fixed built-in technique
DIN rail
yes (Top hat rail mounting optional: yes)
Complete device with protection unit
yes
