NSX630 Trip Unit 3P 570A MicroLogic Vigi 4.3
Schneider Electric

NSX630 Trip Unit 3P 570A MicroLogic Vigi 4.3

Ideal part number SCHC6334V570 Manufacturer number C6334V570 Barcode 3606481994202
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

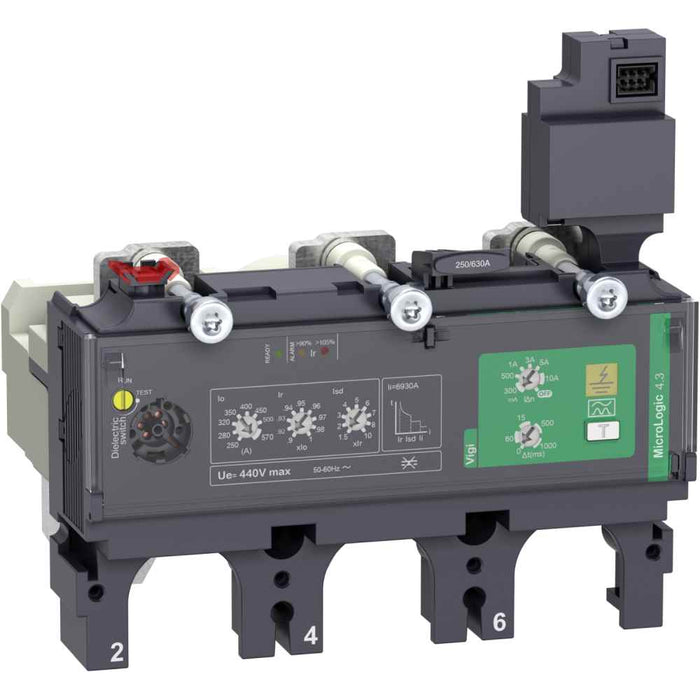

NSX630 Trip Unit, 3 poles, 570A, MicroLogic Vigi 4.3

This MicroLogic 4.3 is a 3 poles 3d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 570A rating electronic trip unit is an optimum choice for all standard and specific applications. It embeds adjustable long time protection against overloads. It provides also an adjustable short-time protection and a fixed instantaneous protection against short-circuits. MicroLogic 4.3 Vigi trip unit offers an integrated adjustable earth-leakage protection. MicroLogic 4.3 indicates overloads with Alarm LEDs. The green Ready LED flashes if the circuit breaker is ready to trip. An earth leakage pre-alarm can be remotely available by installing the optional SDx module (LV429532). This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
570 A
Number of poles
3
Short-circuit release function
Delayed
Overload release current setting
228…570 A
