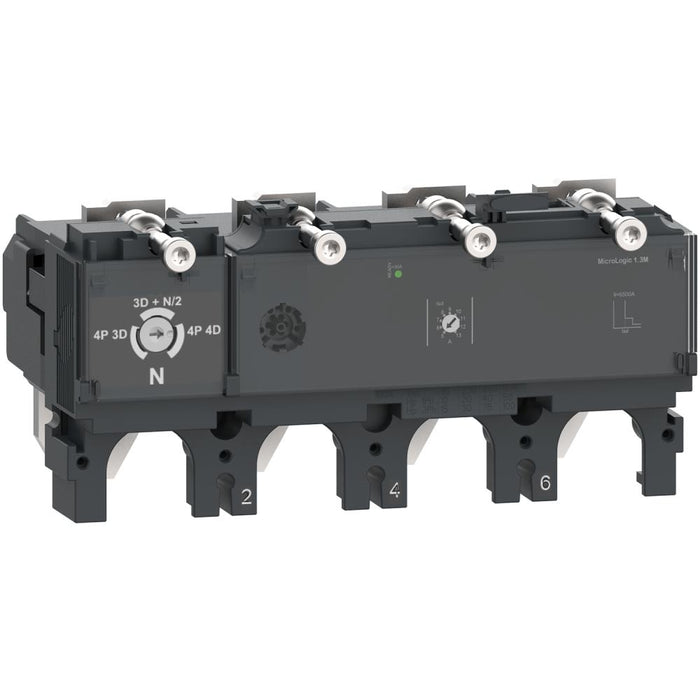

NSX630 Trip Unit 4P 3D 500A MicroLogic 1.3M
Schneider Electric

NSX630 Trip Unit 4P 3D 500A MicroLogic 1.3M

Ideal part number SCHC6341M500 Manufacturer number C6341M500 Barcode 3606482003330
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

NSX630 Trip Unit, 4 poles, 3D 500A, MicroLogic 1.3M

This MicroLogic 1.3 M is a 4 poles 3d electronic trip unit used on ComPacT NSX 630 circuit breakers. This 500A rating electronic trip unit is an optimum choice for motor protection applications. It provides an adjustable short-time protection and a fixed instantaneous protection against short-circuits. The green Ready LED flashes if the circuit breaker is ready to trip. This product is part of our EcoStruxure Power architecture if associated with PowerTag NSX and ComPacT NSX basic frame.

Technical specifications

Rated permanent current Iu
500 A
Number of poles
4
Short-circuit release function
Delayed
