Switch Disconnector NSX500NA 4P DC PV 500A
Schneider Electric

Switch Disconnector NSX500NA 4P DC PV 500A

Ideal part number SCHC634500D1S Manufacturer number C634500D1S Barcode 3606482003675
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

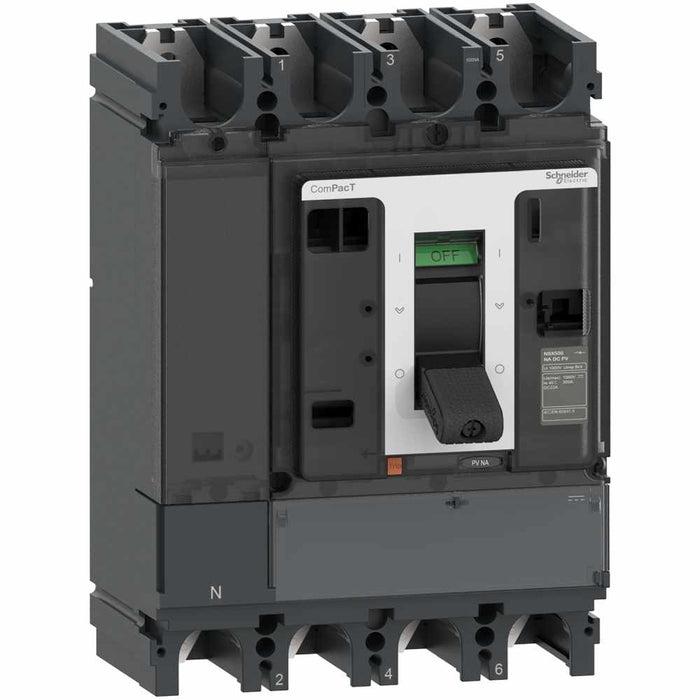

Switch Disconnector, NSX500NA, 4 poles, DC PV, 500A

ComPacT NSX500NA DC PV is a complete 4 poles switch disconnerctor. It's used to control and isolate electrical distribution circuits. It's an optimal choice for photovoltaic applications. The operational current is 500A at 1000VDC for DC-22A utilization categories. The operational voltage is 1000VDC. It comes with a variety of optional functions and accessories common with ComPacT NSX circuit breakers. The dimension is 140mm x 161mm x 86mm (H x W x D). It is compliant with international standards (IEC 60947), CCC and EAC specifications.

Technical specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
500 A
Number of poles
4
Rated operating voltage
1000 V
Degree of protection
IP30 (Ip, front side: IP30)
Number of auxiliary contacts as change-over contact
5
Interlockable
yes
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Version as emergency stop installation
no
Type of control element
Toggle
Version as main switch
yes
Version as safety switch
no
Version as maintenance-/service switch
yes
Rated short-time withstand current lcw
6 kA
Colour control element
Black
Suitable for floor mounting
yes
Suitable for front mounting 4-hole
yes
Suitable for front mounting centre
no
Suitable for distribution board installation
yes
Suitable for intermediate mounting
no
Max. rated operation voltage Ue AC
1000 V
Motor drive optional
yes
Voltage release optional
yes
Device construction
Built-in device fixed built-in technique
Rated permanent current at AC-21, 400 V
500 A
Version as reversing switch
no
