NSX630F DC Circuit Breaker 3P 600A 36kA/750VDC
Product Details

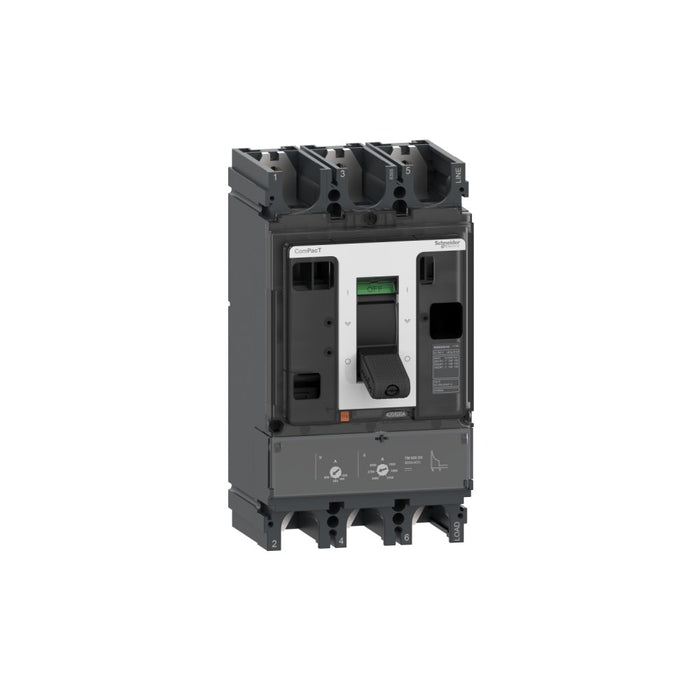

NSX630F DC Circuit Breaker 3 poles 600A, 36kA/750VDC
ComPacT NSX 600F DC is a complete 3 poles fixed circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 36kA rms at 750VDC. The operational voltage is 750VDC. This product embeds a 600A rating thermal-magnetic trip unit (TM-DC). TM-DC trip unit provides an adjustable thermal overload protection and an adjustable magnetic protection. The dimension is 255mm x 140mm x 110mm (H x W x D). It is compliant with international standard EN/IEC 60947.
ComPacT NSX 600F DC is a complete 3 poles fixed circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 36kA rms at 750VDC. The operational voltage is 750VDC. This product embeds a 600A rating thermal-magnetic trip unit (TM-DC). TM-DC trip unit provides an adjustable thermal overload protection and an adjustable magnetic protection. The dimension is 255mm x 140mm x 110mm (H x W x D). It is compliant with international standard EN/IEC 60947.
