NSX630F DC Circuit Breaker 4P 500A 36kA/750VDC
Schneider Electric

NSX630F DC Circuit Breaker 4P 500A 36kA/750VDC

Ideal part number SCHC63F4TM500D Manufacturer number C63F4TM500D Barcode 3606482003408
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

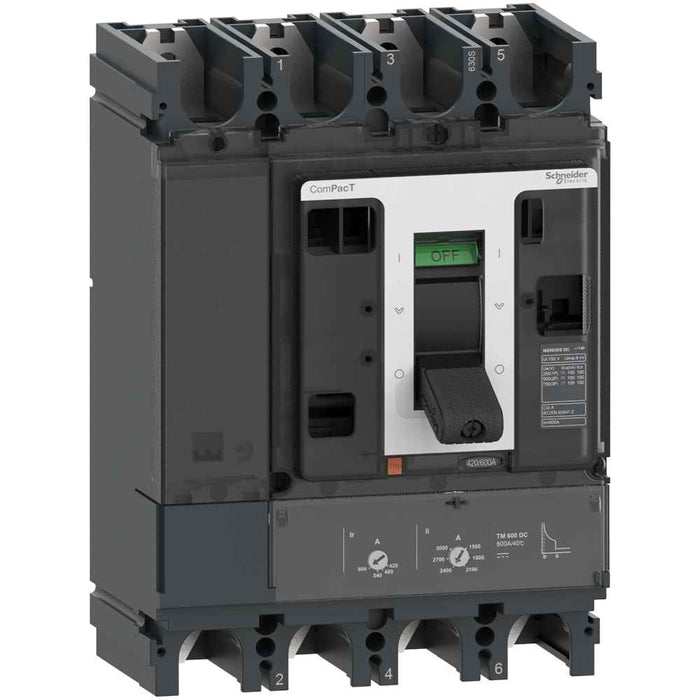

NSX630F DC Circuit Breaker 4 poles 500A, 36kA/750VDC

ComPacT NSX 500F DC is a complete 4 poles fixed circuit breaker designed to optimize space and breaking capacity. It's an optimal choice for applications using DC voltages. The breaking capacity (Icu) is 36kA rms at 750VDC. The operational voltage is 750VDC. This product embeds a 500A rating thermal-magnetic trip unit (TM-DC). TM-DC trip unit provides an adjustable thermal overload protection and an adjustable magnetic protection. The dimension is 255mm x 185mm x 110mm (H x W x D). It is compliant with international standard EN/IEC 60947.

Technical specifications

Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated permanent current Iu
500 A
Number of poles
4
Overload release current setting
350…500 A
Number of auxiliary contacts as change-over contact
5
Rated voltage
750 V
Degree of protection
IP30 (Ip: IP30)
Position of connection for main current circuit
Front side
Motor drive integrated
no
Type of electrical connection of main circuit
Screw connection
Type of control element
Toggle
With switched-off indicator
yes
Adjustment range short-term delayed short-circuit release
1250…2500 A
Suitable for DIN rail
yes (Top hat rail mounting: yes)
Integrated earth fault protection
yes
Motor drive optional
yes
Device construction
Built-in device fixed built-in technique
DIN rail
yes (Top hat rail mounting optional: yes)
Complete device with protection unit
yes
