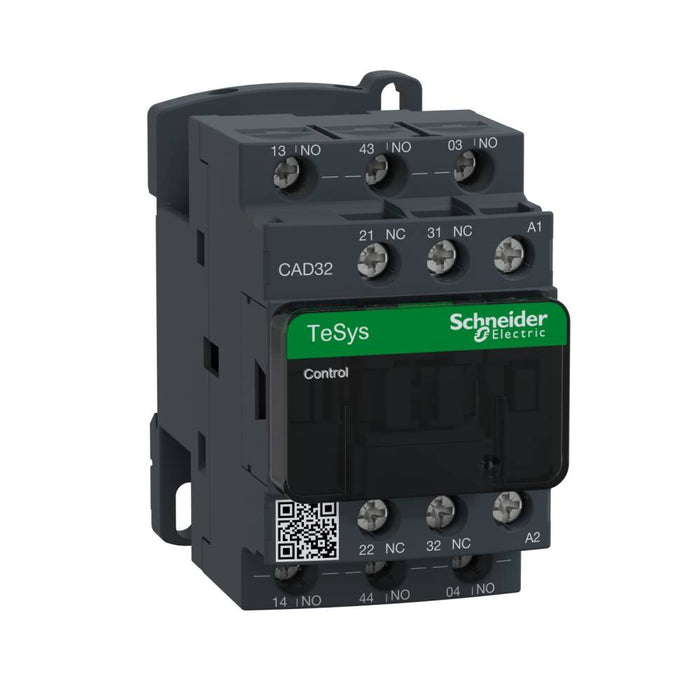

TeSys Deca Control Relay 3NO+2NC 690V-48VAC Standard Coil
Schneider Electric

TeSys Deca Control Relay 3NO+2NC 690V-48VAC Standard Coil

Ideal part number SCHCAD32E7 Manufacturer number CAD32E7 Barcode 3389110400281
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca control relay - 3 NO + 2 NC - = 690 V - 48 V AC standard coil

TeSys D control relay, 5 contacts (3NO + 2NC), 10A/690V, for control of electromagnetic loads AC-15/DC-13. It provides a 48V 50/60Hz AC control circuit, connection by screw clamp terminals. For high operating rates until 180 cycles/min and ambient temperature -40/+60°C, it procures high reliability and durability. Compact (45mm width), for clipping on 35mm DIN rail or fixing by screw. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium product (RoHS/REACh).

Technical specifications

Mounting method
DIN-rail/screw
Interface
no
Number of auxiliary contacts as normally open contact
3
Number of auxiliary contacts as normally closed contact
2
Rated operation current Ie, 400 V
10 A
Number of auxiliary contacts as change-over contact
0
Rated control supply voltage AC 50 Hz
48 V
Rated control supply voltage AC 60 Hz
48 V
With LED indication
no
Connection type auxiliary circuit
Screw connection
Number of auxiliary contacts as normally closed contact, delayed switching
0
Number of auxiliary contacts as normally open contact, leading
0
Voltage type for actuating
AC
