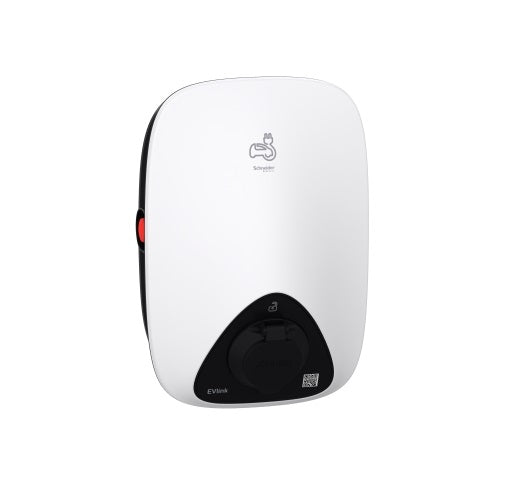

EVlink AC Easy Home Charger 11 Kw 16A 3P
Schneider Electric

EVlink AC Easy Home Charger 11 Kw 16A 3P

Ideal part number SCHEVH4S11N2 Manufacturer number EVH4S11N2 Barcode 3606482107328
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

EVlink AC Easy Home Charger, 11 Kw, 16A, 3 Phase

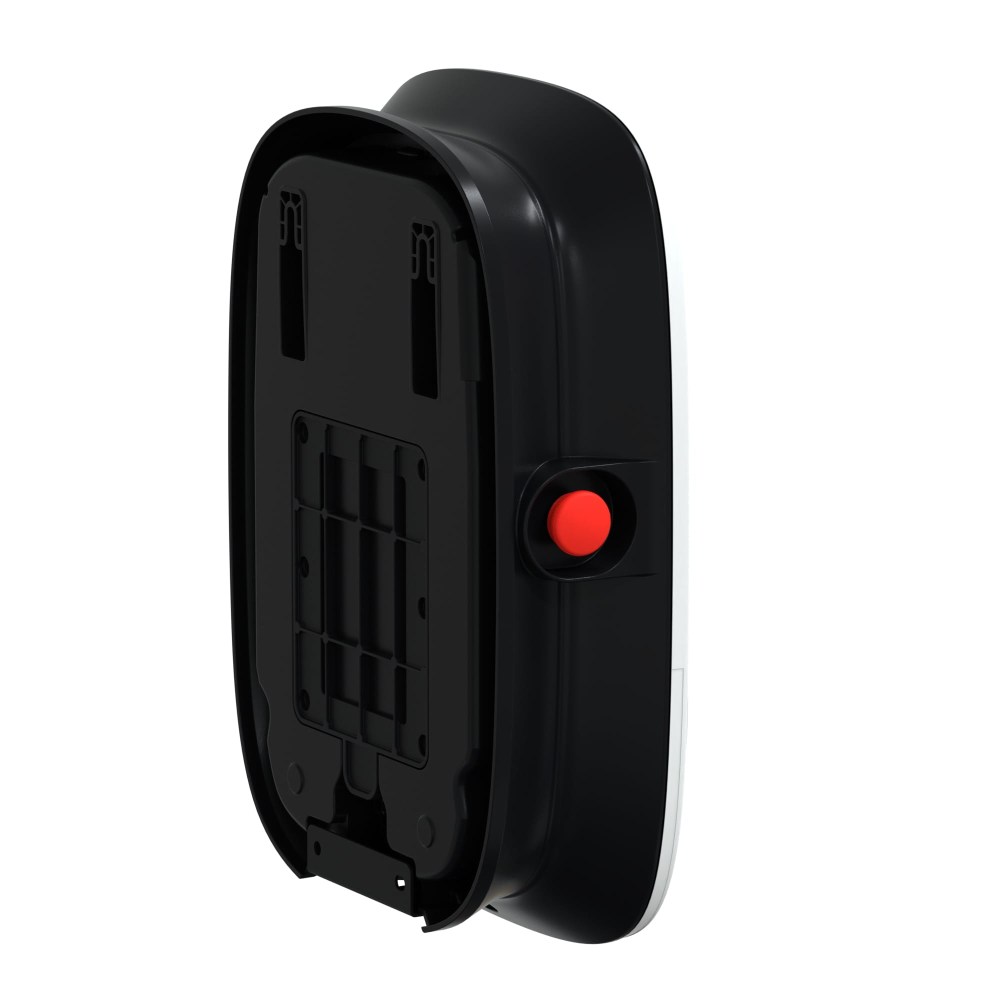

This Evlink Home product is a wall-mounted charging station for all electrical vehicles compliant with IEC61851-1 standard. The IP degree of protection is IP55. The IK degree of protection is IK10. The operating temperature is between -30°C and 50°C. The output type is a T2 socket-outlet, fixed on the front face of the station. The nominal output power is 11kW. It is supplied in three-phase (3P+N). The rated charging current is 16A under 230VAC with a 50Hz to 60Hz frequency. It can be used with a TN-S or TT earthing system. The charging station is easy to install (no special tools required). It is recommended for private use at home, installed in the garage for instance. The dimensions are (W) 282mm x (H) 409mm x (D) 148mm. Its product weight is 5.6kg. Its color is white (RAL9003). It is fitted with a built-in protection against residual direct current (RDC-DD as Residual Direct Current Detecting Device). There is no access control to use the charging station for loading an electrical vehicle. A red push-button is present in case of emergency stop. One LED is changing color between red, green and blue in order to indicate the loading status directly on the charging station. By complementing the charging station with the anti-tripping system, it benefits of the dynamic energy management. This one allows to adjust in real time the maximum power allocated to the charging electric vehicle, according to the consumption of the rest of loads in the house.

Technical specifications

Mounting method
Wall mounting
Width
282 mm
Height
409 mm
Depth
148 mm
Housing material
Plastic
Nominal connection power
11 kW
Impact strength
IK10
Degree of protection
IP54 (Ip: IP54)
Number of CEE socket outlets
0
Number of charging units
1
With house connection box
no
Number of earth leakage circuit breakers type A
0
Number of earth leakage circuit breakers type B
0
Max. power per charging point
11 kWh
Number of vehicle connectors Type 1
0
Number of vehicle connectors Type 1 CCS
0
Number of vehicle connectors Type 2
0
Number of vehicle connectors Type 2 CCS
0
Number of socket outlets Type 2
1
Number of vehicle connectors GB AC
0
Number of vehicle connectors GB DC
0
Number of socket outlets GB
0
Number of socket outlets Type 3
0
Number of vehicle connectors CHAdeMO
0
Number of household socket outlets
2
With energy meter
no
With miniature circuit breaker
no (Mcb: no)
Installation side connection model
3-phase
