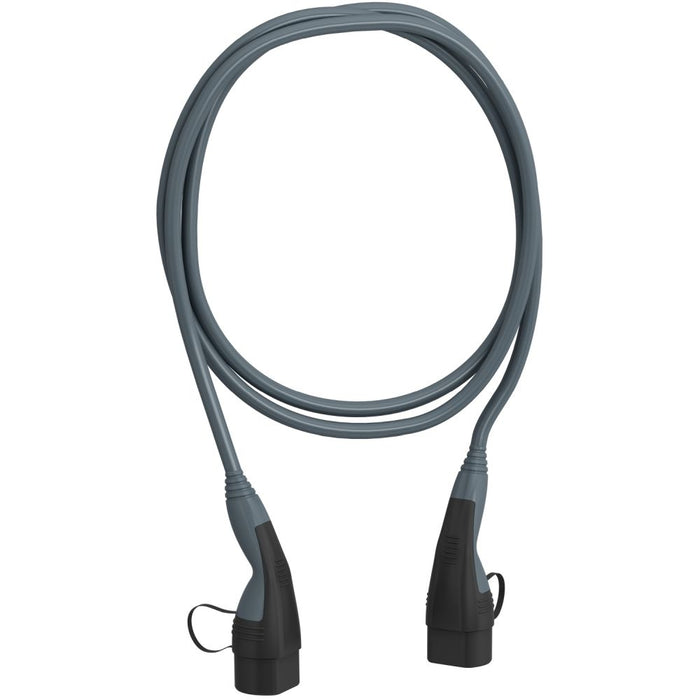

Evlink Charging Cable 5m 32A 1Phase 2 xT2 connector
Schneider Electric

Evlink Charging Cable 5m 32A 1Phase 2 xT2 connector

Ideal part number SCHEVP1CNS32122 Manufacturer number EVP1CNS32122 Barcode 3606480703263
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Charging cable EVlink 5m 32A 1-Phase T2 connector at each end of cable

This EVlink cabling accessory is a single-phase charging cable allowing to connect to an electric vehicle. It can provide a In rated current of 32A on a Us rated supply voltage of 220VAC up to 240VAC. The frequency is 50Hz to 60Hz. The cable length is 5m. At charging station end, as well as at vehicle end, the cable has T2 connector with silver plated contacts limiting overheating. The IP degree of protection is IP44. The IK degree of protection is IK10. The operating temperature is between -30°C to 50°C. The storage temperature is between -40°C to 80°C.

Technical specifications

Nominal current
32 A
Nominal voltage
240 V
Type of current
AC single phase
With temperature sensor
no
Number of communication conductors
1
Type vehicle side
Type 2
Type infrastructure side
Type 2
With Incable Control Box
no (Iccb: no)
Charging mode
Mode 3
