Auxiliary Contacts OFSD
Schneider Electric

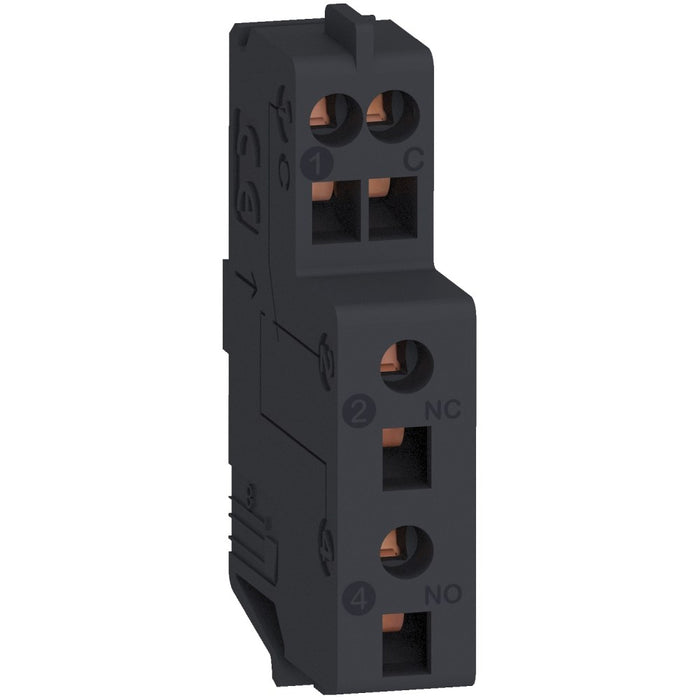

Auxiliary Contacts OFSD

Ideal part number SCHGV4AE11 Manufacturer number GV4AE11 Barcode 3606485444246
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

AUXILIARY CONTACTS OFSD

TeSys GV4 auxiliary contact block, for motor circuit breakers GV4. 1C/O contact, it performs Open/Close OF function or Trip alarm SD function, depending of its location in the circuit breaker. Rated for operation up to 5A/690V AC and 5A/250V DC. To be plugged inside the circuit breaker, in the right-hand cavity for OF function, in the left-hand cavity for SD function, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical Specifications

Mounting method
Other
Model
Half-integrated
Rated operation current Ie at AC-15, 230 V
5 A
Type of electric connection
Spring clamp connection
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
1
