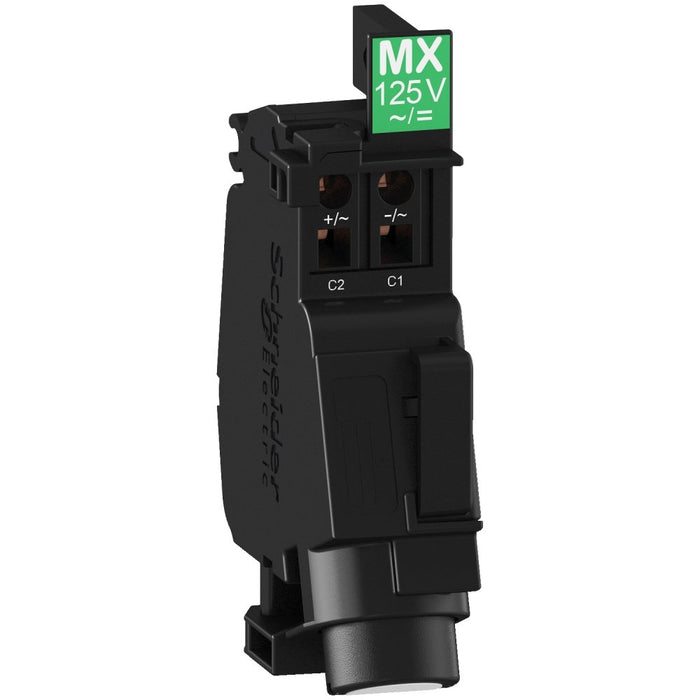

MX Voltage Release 110-130VAC 50/60Hz 125VDC for TeSys GV4
Schneider Electric

MX Voltage Release 110-130VAC 50/60Hz 125VDC for TeSys GV4

Ideal part number SCHGV4AS137 Manufacturer number GV4AS137 Barcode 3606485444901
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

MX voltage release 110...130 V AC 50/60Hz 125 V DC for TeSys GV4

TeSys GV electrical trip unit, MX shunt trip, 110-130V AC 50Hz/60Hz or 125V DC, for motor circuit breakers GV4. It trips the circuit breaker when the control voltage is applied in limits 0.7-1.1 Uc with an impulse duration greater than 20ms or a maintained signal. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Technical specifications

Suitable for off-load switch
no
Suitable for overload relay
no
Type of electric connection
Spring clamp connection
Rated control supply voltage AC 50 Hz
110 V
Rated control supply voltage AC 60 Hz
110 V
Rated control supply voltage DC
125 V
Suitable for motor safety switch
no
Suitable for power circuit breaker
yes
Voltage type for actuating
AC/DC
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
