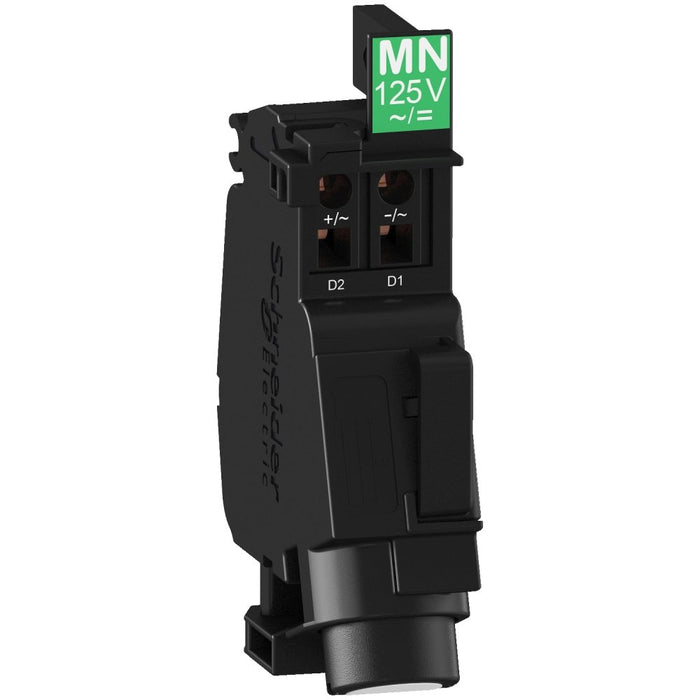

MN Undervoltage Release 110-130VAC 50/60Hz 125VDC TeSys GV4
Schneider Electric

MN Undervoltage Release 110-130VAC 50/60Hz 125VDC TeSys GV4

Ideal part number SCHGV4AU137 Manufacturer number GV4AU137 Barcode 3606485444833
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

MN undervoltage release 110...130 V AC 50/60Hz 125 V DC for TeSys GV4

TeSys GV electrical trip unit, MN undervoltage release, 110-130V AC 50/60Hz and 125V DC, for motor circuit breakers GV4. Opening of the the circuit breaker is ensured when the control voltage drops below 0.35 Uc, and possible between 0.35-0.7 Uc. Closing of the circuit breaker is possible when the control voltage is in limits 0.85-1.1 Uc. To be plugged inside the circuit breaker, connection by spring terminals. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).

Technical specifications

Delayed
no
Suitable for off-load switch
no
Suitable for overload relay
no
Type of electric connection
Spring clamp connection
Rated control supply voltage AC 50 Hz
110 V
Rated control supply voltage AC 60 Hz
110 V
Rated control supply voltage DC
125 V
Suitable for motor safety switch
no
Suitable for power circuit breaker
yes
Voltage type for actuating
AC/DC
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
0
Number of contacts as change-over contact
0
