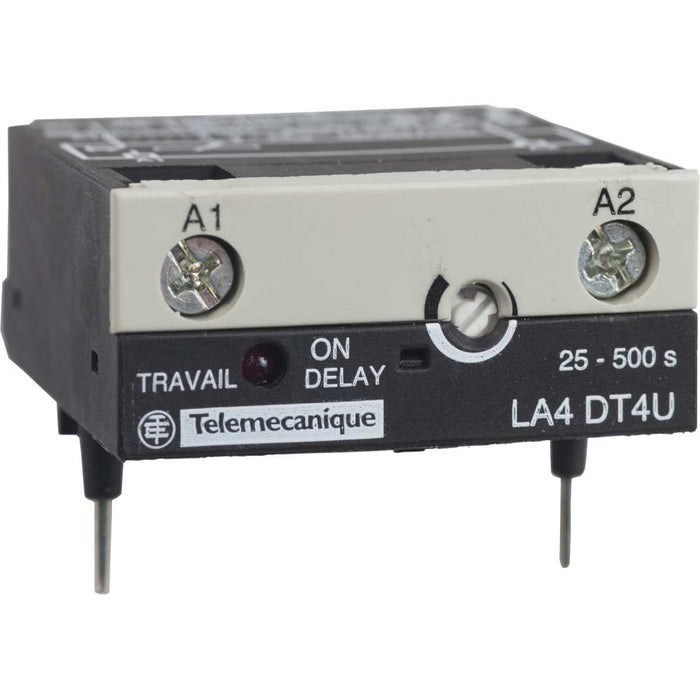

Electronic Timer Module 25-500s 24-250VDC/AC
Schneider Electric

Electronic Timer Module 25-500s 24-250VDC/AC

Ideal part number SCHLA4DT4U Manufacturer number LA4DT4U Barcode 3389110192780
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

electronic timer module - type on delay 25...500 s - 24...250 V DC/AC

TeSys Deca electronic timer module for LC1D09-D38, LC1D40A-D80A, LC1D80-D150 (3P) contactors. To be used with 24-250V AC control circuit voltages, it provides a manual ajustable on-delay time 25 to 500 sec. The time delay period is signalling by LED. Mounting on contactors LC1D09-D38 using adapter LAD4BB, on contactors LC1D40A-D80A using adpater LAD4BB3, on contactors LC1D80-D150 (3P) directly on coil terminals. Multi standards certified (IEC, UL, CSA), it conforms to RoHS/REACh regulation.

Technical specifications

Switching function
Operating delayed
Operating principle
Electronic
Setting time
25 s
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
