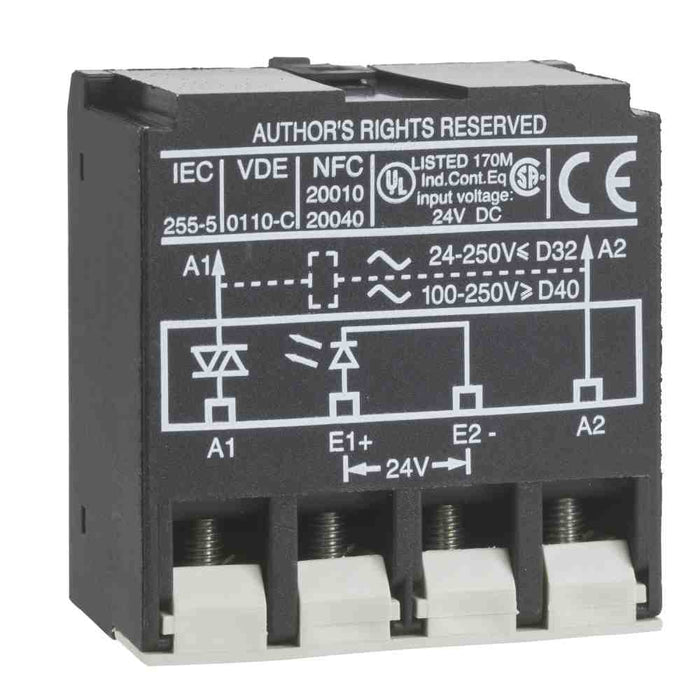

Interface Amplifier Module Solid State 24VDC/250VAC
Schneider Electric

Interface Amplifier Module Solid State 24VDC/250VAC

Ideal part number SCHLA4DWB Manufacturer number LA4DWB Barcode 3389110236477
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca - interface amplifier module - solid state - 24 V DC / 250 V AC

TeSys Deca low signal interface module, for control of contactors LC.D09-D115 (3P). Static relay interface controlled by a 24V DC input signal. To be used with contactors with 24-250V AC coils (B7 to U7), for contactors LC.D80-D115 the use is limited to 100-250V AC coils (F7 to U7). To be mounted on a coil wiring adapter LAD4BB for contactors LC.D09-D38, LAD4BB3 for contactors LC.D40A-D80A, and directly on contactors LC.D80-D115. Green Premium compliant (RoHS/REACh).

Technical specifications

With integrated suppressor
no
Rated control supply voltage DC
24 V
Type of set-up
Direct attachment
Voltage type for actuating
DC
