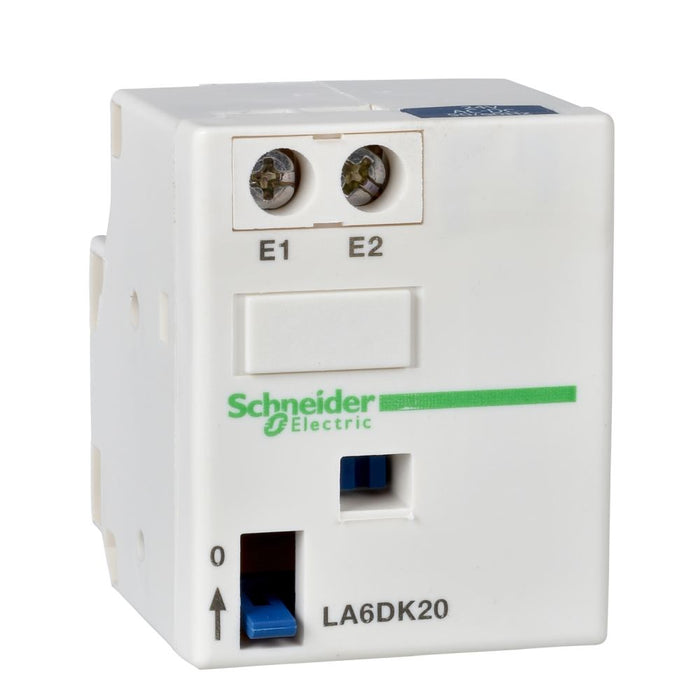

Contactor Latch Block LC1/LP1 D80-D150 110V

Contactor Latch Block LC1/LP1 D80-D150 110V

by Schneider Electric
Ideal Part Number SCHLA6DK20F Manufacturer Number LA6DK20F Barcode 3389110766462

Product Details

CONTACTOR LATCH BLOCK IEC

TeSys Deca mechanical latch block, for contactors LC1D80-D150 (3P/4P) and LP1D40-80 (4P). Electrical latching and unlatching is performed applying a 110-127V control voltage pulse ( 100ms in AC, 250ms in DC). Unlatching can be manually operated. Clip-on mounting on front of contactor, connection by screw terminals. For applications with high operating rates until 1200 cycles/hour. Multi standards certified (IEC, UL, CSA), Green Premium compliant (RoHS/REACh).
Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Type of accessory/spare part
Mechanical locking
