Current Limiter 32A/690V DIN Mount
Schneider Electric

Current Limiter 32A/690V DIN Mount

Ideal part number SCHLA9LB920 Manufacturer number LA9LB920 Barcode 3389110741384
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

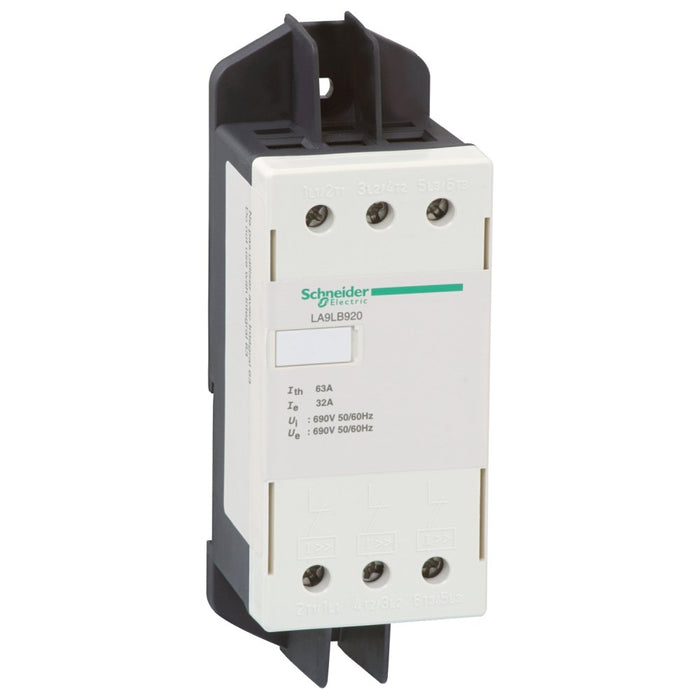

Current Limiter 32A/690V DIN Mount

TeSys Integral short circuit current limiter block for contactor breakers Integral 63, motor circuit breakers TeSys GV2, starter controllers TeSys U. It increases the ability of the circuit breaker to withstand a short circuit current from 50 kA to 100/130kA@400 V. To be connected upstream of one or multiple circuit breakers with a total motor nominal current of 32A. For clipping on a 35mm DIN rail or screw fixing, independant mounting from the protection device. It conforms to RoHS/REACh regulation.

Technical specifications

Mounting method
DIN rail
Rated permanent current Iu
63 A
Conditioned rated short-circuit current Iq
100 kA
Short-circuit current limiter
yes
