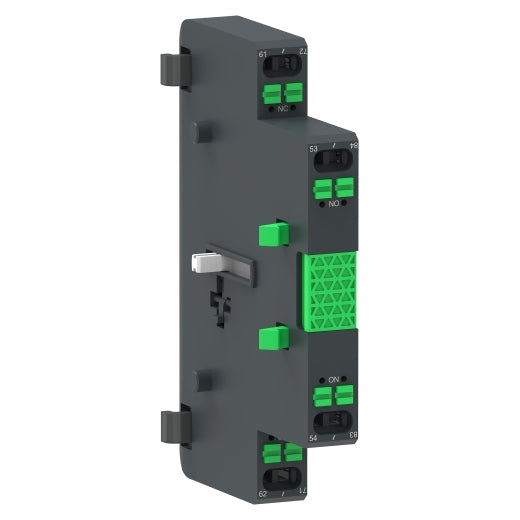

Auxiliary Contact 1NO+1NC Spring Terminals TeSys G
Schneider Electric

Auxiliary Contact 1NO+1NC Spring Terminals TeSys G

Ideal part number SCHLAG8N113 Manufacturer number LAG8N113 Barcode 3606481916310
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Auxiliary Contact 1NO+1NC Spring Terminals TeSys G

These accessories are auxiliary contact block 1NO+1NC for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Technical specifications

Mounting method
Side mounting
Model
Half-integrated
Rated operation current Ie at AC-15, 230 V
10 A
Type of electric connection
Spring clamp connection
Number of contacts as normally closed contact
1
Number of contacts as normally open contact
1
Number of contacts as change-over contact
0
