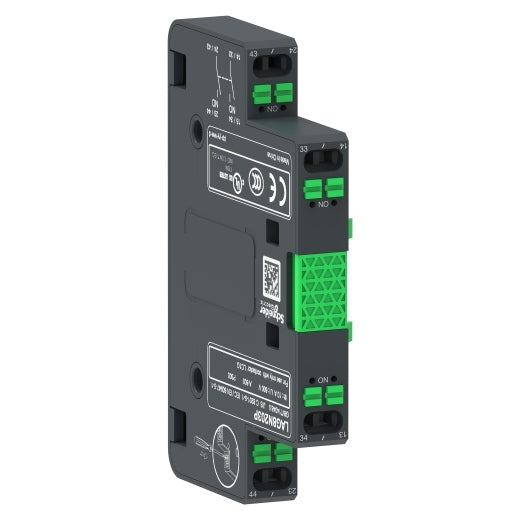

Auxiliary Contact 2NO Spring Terminals R1/L1 TeSys G

Auxiliary Contact 2NO Spring Terminals R1/L1 TeSys G

by Schneider Electric
Ideal Part Number SCHLAG8N203P Manufacturer Number LAG8N203P Barcode 3.60648E+12

Product Details

Auxiliary Contact 2NO Spring Terminals R1/L1 TeSys G


These accessories are auxiliary contact block 2NO for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals R1/L1. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).

Request a quote for this product

Enter details to request a quote

Technical Documents

Technical Specifications

Mounting method
Side mounting
Model
Half-integrated
Rated operation current Ie at AC-15, 230 V
10
Type of electric connection
Spring clamp connection
Number of contacts as normally closed contact
0
Number of contacts as normally open contact
2
Number of contacts as change-over contact
0
Rated operation current Ie at AC-15, 230 V (unit)
A
