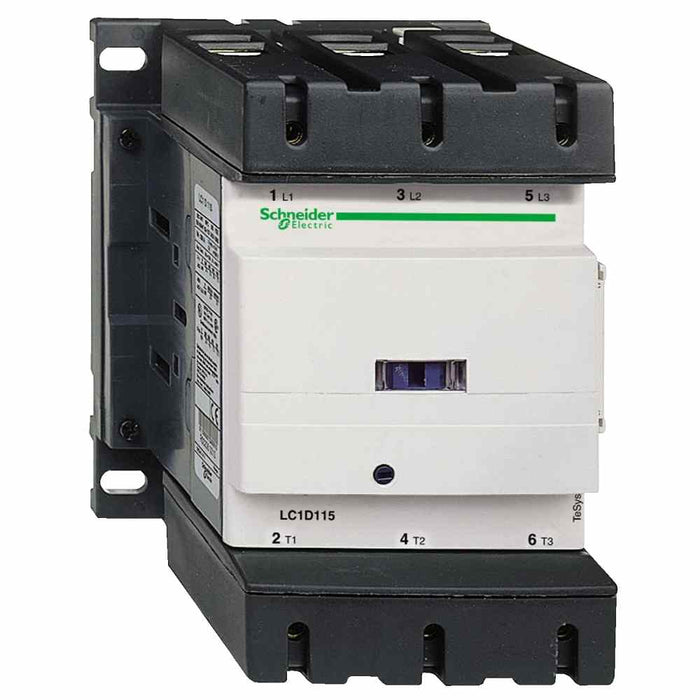

Contactor 3P AC-3 440V 115A 415V AC 50/60 Hz Coil
Schneider Electric

Contactor 3P AC-3 440V 115A 415V AC 50/60 Hz Coil

Ideal part number SCHLC1D115N7 Manufacturer number LC1D115N7 Barcode 3389110377200
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca contactor 3P(3 NO) AC-3 440V 115A 415V AC 50/60 Hz coil

TeSys Deca contactor, 3 poles(3NO) for category AC-3 applications up to 115A @440V. It provides with 415V 50/60 Hz coil, with 1NO+1NC auxiliary contacts, power and control connections by screw clamp terminals. It procures high reliability and durability with 8 Mcycles mechanical durability and 0.95 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 1200 cycles per hour under maximum 60°C. The dimension is 158mm x 120mm x 136mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,DNV,GL,CSA,GOST,BV,UL,LROS,RINA,UKCA) and Green Premium compliant (RoHs/Reach).

Technical specifications

Modular version
no
Rated operation power at AC-3, 400 V
55 kW
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
115 A
Rated operation current Ie at AC-1, 400 V
200 A
Rated control supply voltage AC 50 Hz
415 V
Rated control supply voltage AC 60 Hz
415 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
38 A
Rated operation power at AC-4, 400 V
18.5 kW
