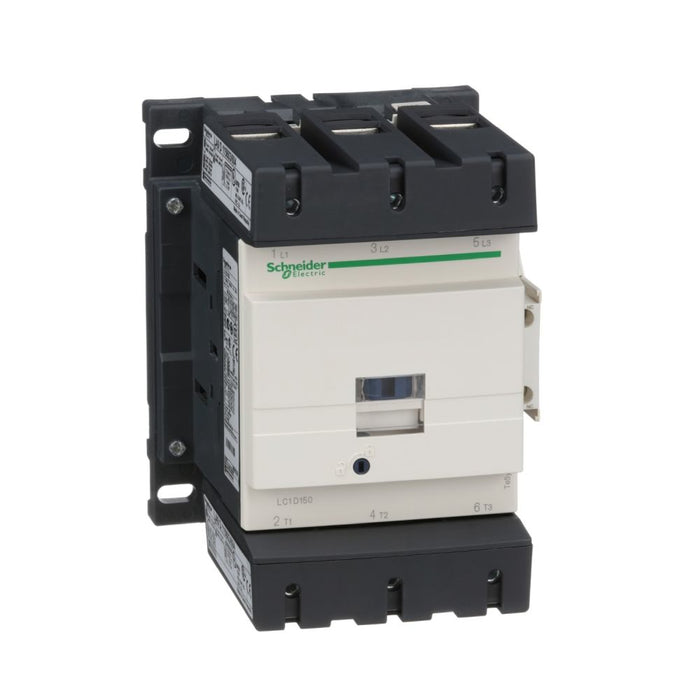

Contactor 3P AC-3 440V 150 A 415V AC 50/60 Hz Coil
Schneider Electric

Contactor 3P AC-3 440V 150 A 415V AC 50/60 Hz Coil

Ideal part number SCHLC1D150N7 Manufacturer number LC1D150N7 Barcode 3389110476064
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca contactor 3P(3 NO) AC-3 440V 150 A 415V AC 50/60 Hz coil

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 150A/1000V AC-3 (75kW@400V). It provides a 415V 50/60Hz AC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirrror contact), power connection by screw connectors 2 inputs, control connection by screw clamp terminals. For operating rates until 1200 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (120mm width), mounting on 2 DIN-rails or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications

Modular version
no
Rated operation power at AC-3, 400 V
75 kW
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
150 A
Rated operation current Ie at AC-1, 400 V
200 A
Rated control supply voltage AC 50 Hz
415 V
Rated control supply voltage AC 60 Hz
415 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
50 A
Rated operation power at AC-4, 400 V
22 kW
