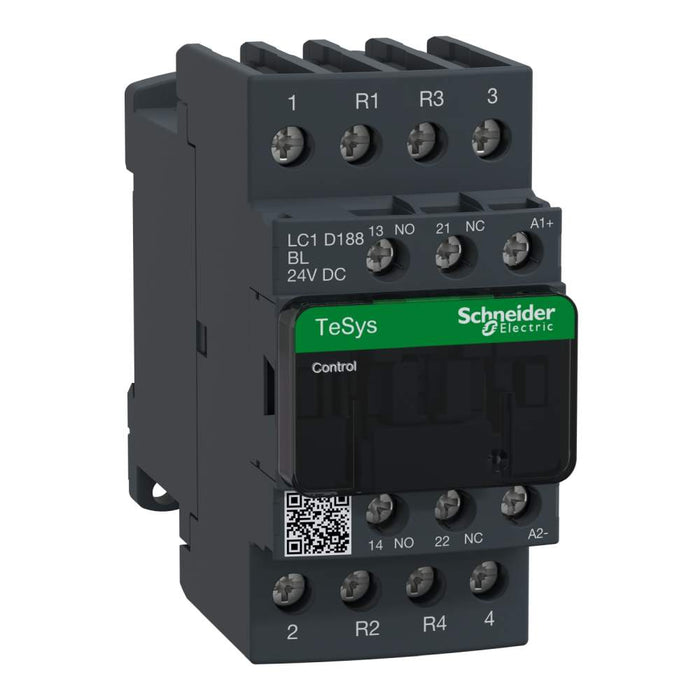

Deca Contactor 4P 32A AC-1 (2NO 2NC) 24VDC LC
Schneider Electric

Deca Contactor 4P 32A AC-1 (2NO 2NC) 24VDC LC

Ideal part number SCHLC1D188BL Manufacturer number LC1D188BL Barcode 3389110449716
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca Contactor 4 Pole (2 NO + 2 NC) AC1 440 V 32 A 24 V DC coil

TeSys D contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 32A/690V AC-1. It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications

Modular version
no
Number of normally open contacts as main contact
2
Number of normally closed contacts as main contact
2
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-1, 400 V
32 A
Rated control supply voltage DC
24 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
DC
