Contactor 3P AC-3/AC-3e 440 V 18 A 220 V AC Coil
Schneider Electric

Contactor 3P AC-3/AC-3e 440 V 18 A 220 V AC Coil

Ideal part number SCHLC1D18M7 Manufacturer number LC1D18M7 Barcode 3389110349504
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

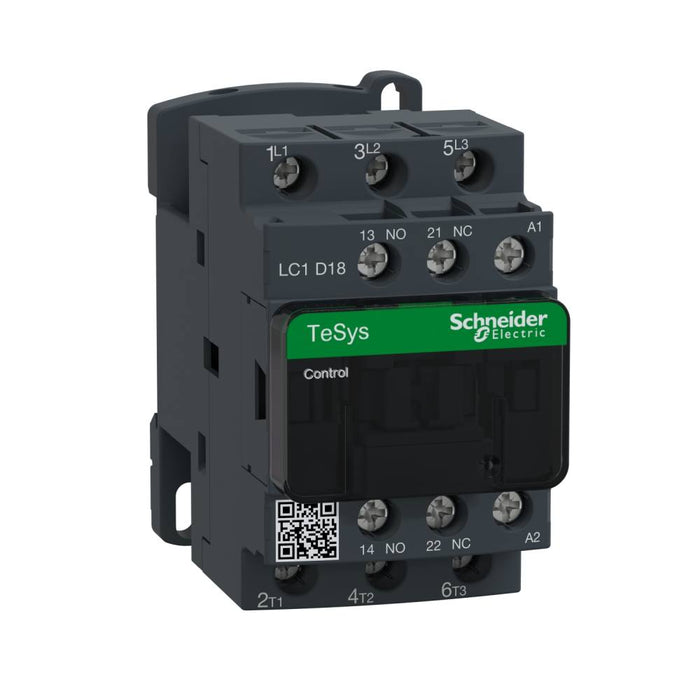

TeSys Deca contactor - 3P(3 NO) - AC-3/AC-3e - 440 V 18 A - 220 V AC coil

TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3 (7.5kW@400V). It provides a 220V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications

Modular version
no
Rated operation power at AC-3, 400 V
7.5 kW
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
18 A
Rated operation current Ie at AC-1, 400 V
32 A
Rated control supply voltage AC 50 Hz
220 V
Rated control supply voltage AC 60 Hz
220 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
9 A
Rated operation power at AC-4, 400 V
4 kW
