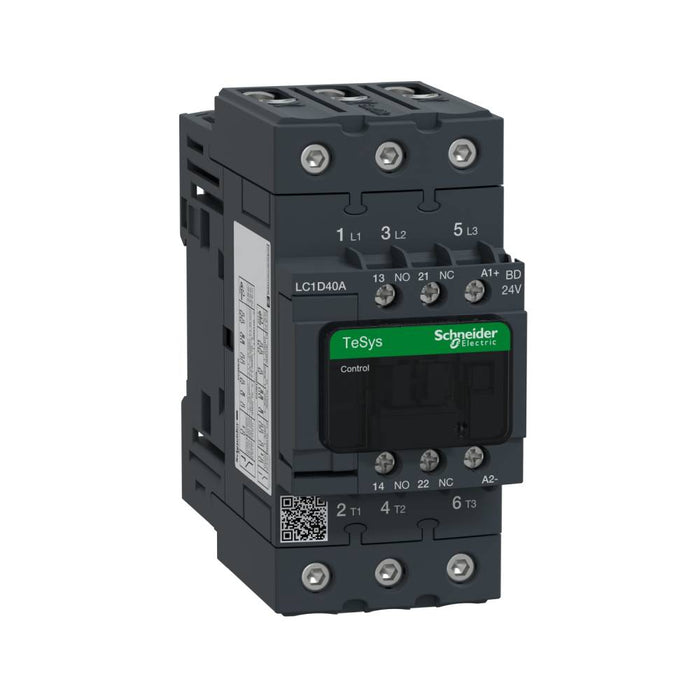

Contactor 3P AC-3/AC-3e 440V 40 A 24V DC Standard Coil
Schneider Electric

Contactor 3P AC-3/AC-3e 440V 40 A 24V DC Standard Coil

Ideal part number SCHLC1D40ABD Manufacturer number LC1D40ABD Barcode 3389119408486
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca contactor 3P(3 NO) AC-3/AC-3e 440V 40 A 24V DC standard coil

TeSys D contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3/3e (18.5kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by EverLink BTR screw connectors, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications

Modular version
no
Rated operation power at AC-3, 400 V
18.5 kW
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
40 A
Rated operation current Ie at AC-1, 400 V
60 A
Rated control supply voltage DC
24 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
DC
Rated operation current Ie at AC-4, 400 V
20 A
Rated operation power at AC-4, 400 V
9 kW
