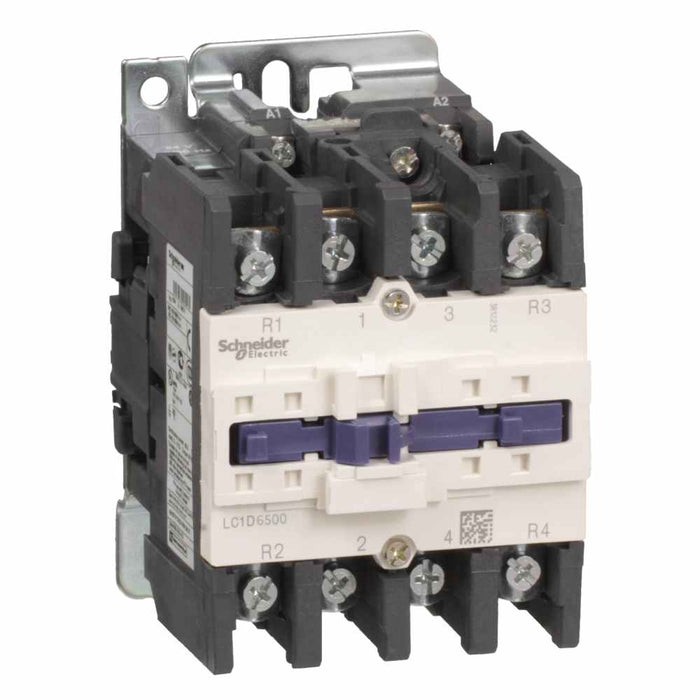

Deca Contactor 4P 80A AC-1 (2NO 2NC) 240VAC Coil
Schneider Electric

Deca Contactor 4P 80A AC-1 (2NO 2NC) 240VAC Coil

Ideal part number SCHLC1D65008U7 Manufacturer number LC1D65008U7 Barcode 3389110073355
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca contactor 4P(2 NO + 2 NC) AC-1 440V 80 A 240V AC 50/60 Hz coil

TeSys Deca contactor, 4 poles (2NO/2NC),for load control applications in category AC-1. and for non-inductive load control applications up to 80A@60℃. It provides a 240V 50/60Hz standard AC coil,without built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures reliability and durability to standard applications. Very compact (55mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EN), Green Premium compliant (RoHS/REACh).

Technical specifications

Modular version
no
Number of normally open contacts as main contact
2
Number of normally closed contacts as main contact
2
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-1, 400 V
80 A
Rated control supply voltage AC 50 Hz
240 V
Rated control supply voltage AC 60 Hz
240 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
