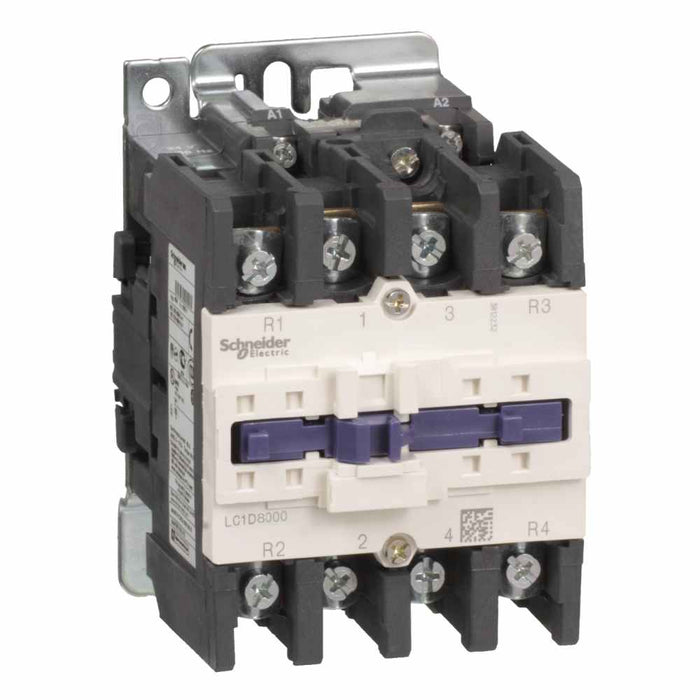

Deca Contactor 4P 125A AC-1 (2NO 2NC) 240VAC Coil
Schneider Electric

Deca Contactor 4P 125A AC-1 (2NO 2NC) 240VAC Coil

Ideal part number SCHLC1D80008U7 Manufacturer number LC1D80008U7 Barcode 3389110075618
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca contactor 4P(2 NO + 2 NC) AC-1 440V 125A 240V AC 50/60 Hz coil

TeSys Deca contactor, 4 poles(2NO+2NC) for category AC-1 applications up to 125A @440V. It provides with 240V 50/60 Hz coil, power and control connections by screw clamp terminals. It procures with 4 Mcycles mechanical durability and 0.8 Mcycles electrical durability. It provides IP20 protection on front face conforming to IEC 60529. It can cover -40°C to 60°C operation temperature and without derating under 3000m altitude. Designed for demanding applications with maximum operating rates up to 3600 cycles per hour under maximum 60°C. The dimension is 127mm x 96mm x 140mm (H x W x D), mounting on rail or plate. Multi standards certified(CCC,CSA,UL,UKCA,CB,EAC) and Green Premium compliant (RoHs/Reach).

Technical specifications

Modular version
no
Number of normally open contacts as main contact
2
Number of normally closed contacts as main contact
2
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-1, 400 V
125 A
Rated control supply voltage AC 50 Hz
240 V
Rated control supply voltage AC 60 Hz
240 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
