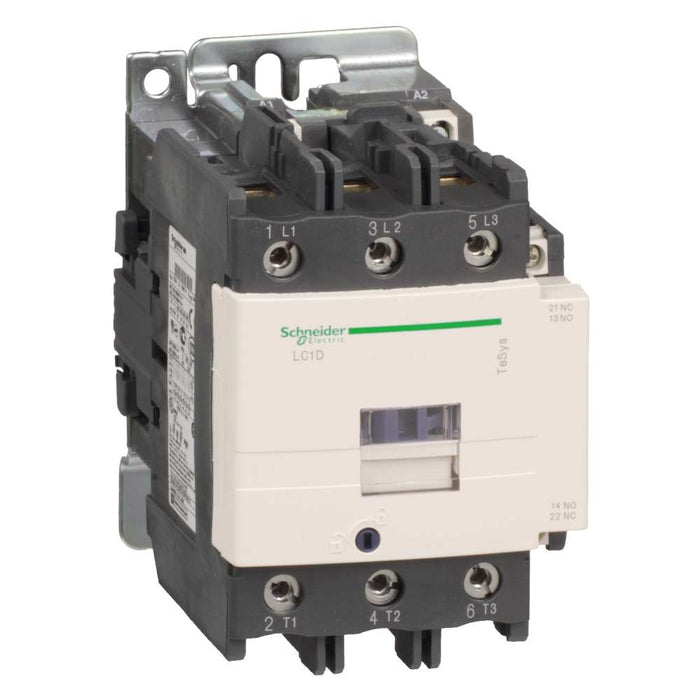

Contactor 3P AC-3/AC-3e 440V 80 A 24V AC 50/60 Hz Coil
Schneider Electric

Contactor 3P AC-3/AC-3e 440V 80 A 24V AC 50/60 Hz Coil

Ideal part number SCHLC1D80B7 Manufacturer number LC1D80B7 Barcode 3389110440034
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca contactor 3P(3 NO) AC-3/AC-3e 440V 80 A 24V AC 50/60 Hz coil

TeSys Deca contactor, 3 poles (3NO), for motor control applications up to 80A/1000V AC-3/AC-3e (37kW@400V). It provides a 24V 50/60Hz AC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Technical specifications

Modular version
no
Rated operation power at AC-3, 400 V
37 kW
Number of normally open contacts as main contact
3
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-3, 400 V
80 A
Rated operation current Ie at AC-1, 400 V
125 A
Rated control supply voltage AC 50 Hz
24 V
Rated control supply voltage AC 60 Hz
24 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
AC
Rated operation current Ie at AC-4, 400 V
32 A
Rated operation power at AC-4, 400 V
15 kW
