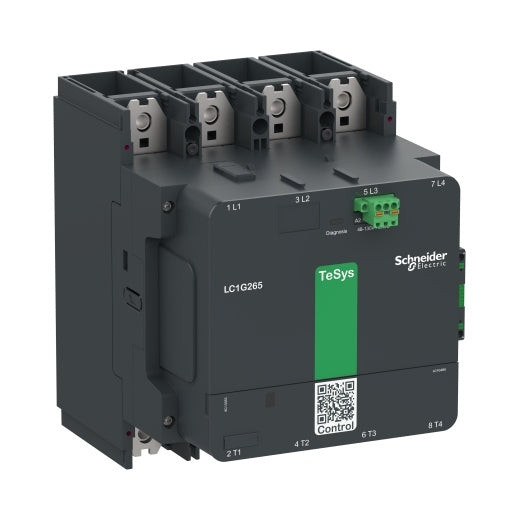

Tesys Contactor 4P 265A 440V AC3 Standard 100-250VAC/DC Coil
Schneider Electric

Tesys Contactor 4P 265A 440V AC3 Standard 100-250VAC/DC Coil

Ideal part number SCHLC1G2654KUEN Manufacturer number LC1G2654KUEN Barcode 3606481922168
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Tesys Contactor 4 pole 265A 440V AC3 Standard 100-250VAC/DC Coil

TeSys Giga high power contactor, 4 poles (4 NO) for category AC-1 applications up to 385A @440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 290mm x 185mm x 209mm (H x W x D), compact size enables panel space savings. Multi standards certified(CE,CB,CCC,cULus,EAC,KC,RCM,Marine) and Green Premium compliant (RoHs/Reach). Unique QR code provides quick access to complete product data.

Technical specifications

Modular version
no
Rated operation power at AC-3, 400 V
132 kW
Number of normally open contacts as main contact
4
Number of normally closed contacts as main contact
0
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie at AC-1, 400 V
385 A
Rated control supply voltage AC 50 Hz
100...250 V
Rated control supply voltage AC 60 Hz
100...250 V
Rated control supply voltage DC
100...250 V
Type of electrical connection of main circuit
Bolt connection
Voltage type for actuating
AC/DC
Rated operation current Ie at AC-4, 400 V
265 A
Rated operation power at AC-4, 400 V
132 kW
