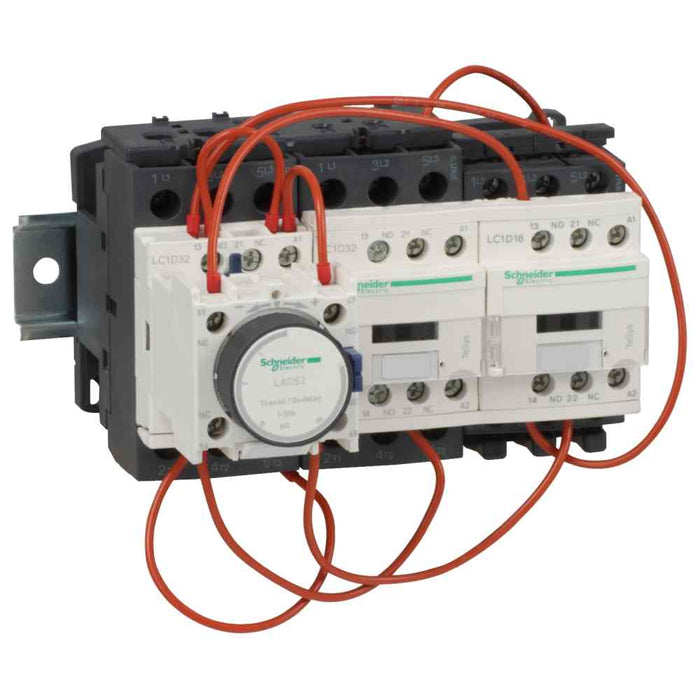

TeSys Deca Star Delta Starter 3 x 3P (3 NO) 32A 230V AC Coil
Ideal Part Number SCHLC3D320AP7
Manufacturer Number LC3D320AP7
Barcode 3389110552393
Product Details
TeSys Deca star delta starter 3 x 3P (3 NO) 32 A 230 V AC coil
TeSys D pre-assembled star-delta starter, for motor control applications up to 25kW@400V in delta connection. Rail mounted starter, open version, composed of 3 contactors LC1D with 230V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec. For operating rates until 30 starts/hour, maximum starting time 30 sec. Compact assembly (165mm width), screw fixing. Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended. Green Premium compliant (RoHS/REACh).
TeSys D pre-assembled star-delta starter, for motor control applications up to 25kW@400V in delta connection. Rail mounted starter, open version, composed of 3 contactors LC1D with 230V 50/60Hz AC coils, 1NC built-in auxiliary contact on star, a time-delay contact block 1-30 sec. For operating rates until 30 starts/hour, maximum starting time 30 sec. Compact assembly (165mm width), screw fixing. Equipped with pre-wired star delta power connections, and mechanical interlock, the use of a thermal overload relay (to be ordered separately) is strongly recommended. Green Premium compliant (RoHS/REACh).
