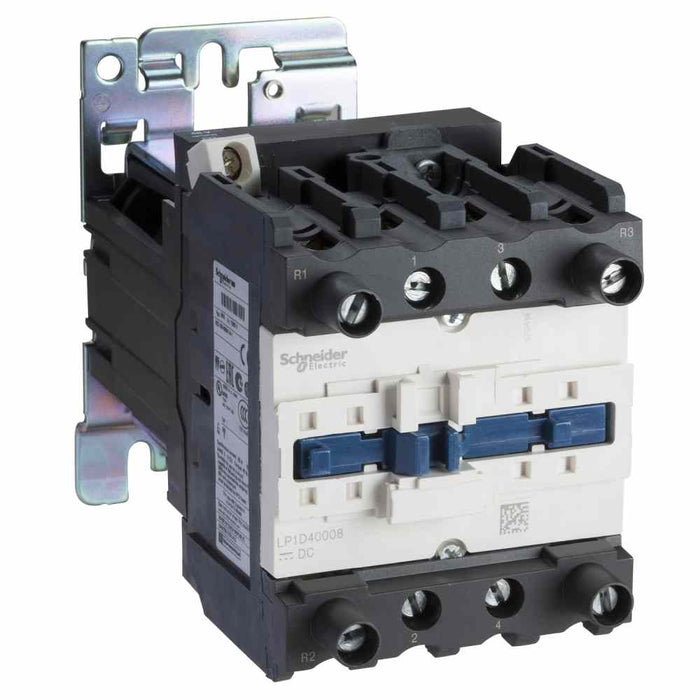

Deca Contactor 4P 60A AC-1 (2NO 2NC) 24VDC Coil
Schneider Electric

Deca Contactor 4P 60A AC-1 (2NO 2NC) 24VDC Coil

Ideal part number SCHLP1D40008BD Manufacturer number LP1D40008BD Barcode 3389110234060
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca contactor - 4P(2 NO + 2 NC) - AC-1 - 440 V 60 A - 24 V DC coil

TeSys Deca contactor, 4 poles (2NO+2NC), for non-inductive load applications up to 60A/690V AC-1. It provides a 24V DC coil, power connection by screw terminals, control connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (85mm width), DIN-rail mounting or screw fixing. Without build-in auxiliary contacts, front mounting auxiliary contact blocks can be added (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications

Modular version
no
Number of normally open contacts as main contact
2
Number of normally closed contacts as main contact
2
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as normally closed contact
0
Rated operation current Ie at AC-1, 400 V
60 A
Rated control supply voltage DC
24 V
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
DC
