Tesys LR D Thermal Overload Relays 90-150 A
Schneider Electric

Tesys LR D Thermal Overload Relays 90-150 A

Ideal part number SCHLR9D5369 Manufacturer number LR9D5369 Barcode 3389110787931
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca thermal overload relays - 90...150 A - class 10

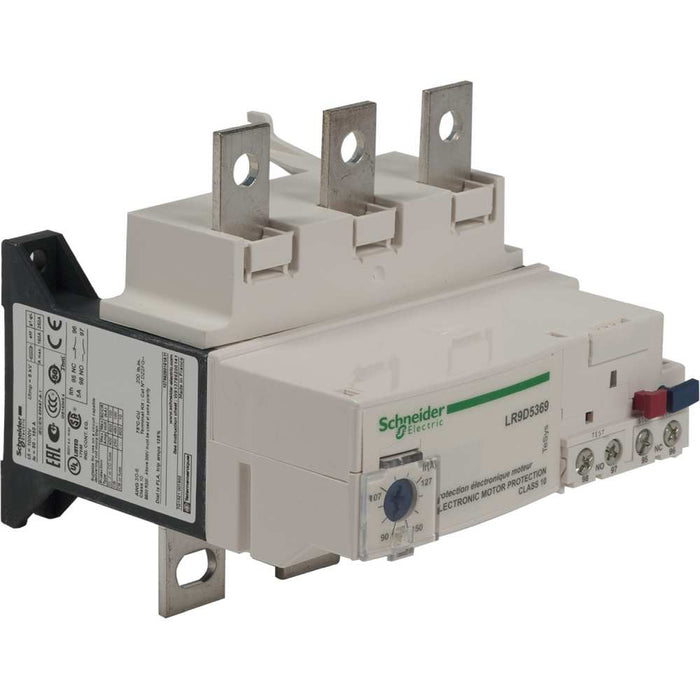

TeSys LR9D electronic overload relay, 150A/1000V, thermal setting range 90-150A, tripping class 10, for protection of 3-phase motors 55-75kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by bolt terminals for bars or cables with lugs, it connects directly to the bottom terminals of 3-pole contactors LC1D115, D150. Mounting on DIN rail or screw fixing, separated from contactor, can be done without accessories. Multi-standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHs/Reach).

Technical specifications

Mounting method
Direct attachment/single positioning
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Number of auxiliary contacts as change-over contact
0
Release class
CLASS 10
Type of electrical connection of main circuit
Screw connection
Max. rated operation voltage Ue
690 V
Adjustable current range
90 A
