Ultra ReVersing Power Base 3P 32A/690V Coil 24V DC
Schneider Electric

Ultra ReVersing Power Base 3P 32A/690V Coil 24V DC

Ideal part number SCHLU2B32BL Manufacturer number LU2B32BL Barcode 3389110362978
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

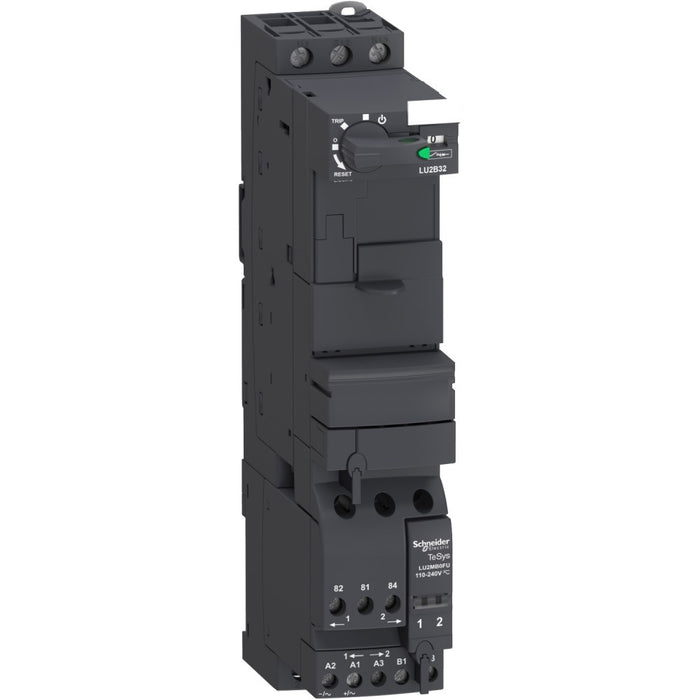

Ultra ReVersing Power Base 3P 32A/690V Coil 24V DC

TeSys U standard reversing power base, 3 poles (3NO), rated 32A/690V, to be completed with a control unit LUC to form a TeSys U reversing starter controller, for 3-phase motor applications up to 15kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a all in one reversing starter controller with basic or advanced protection and control functions. It is equipped with a reverser module LU2MB0BL to be supplied with 24V DC, auxiliary signaling contacts (1NO+1NC), a control terminal block, blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical specifications

Rated operation power at AC-3, 400 V
15 kW
Number of auxiliary contacts as normally open contact
1
Number of auxiliary contacts as normally closed contact
1
Rated operation current Ie
32 A
Supporting protocol for LON
no
Supporting protocol for TCP/IP
no
Supporting protocol for ASI
no
Supporting protocol for PROFIBUS
no
Supporting protocol for CAN
no
Supporting protocol for INTERBUS
no
Supporting protocol for MODBUS
no
Supporting protocol for Data-Highway
no
Supporting protocol for DeviceNet
no
Supporting protocol for SUCONET
no
Supporting protocol for other bus systems
no
Rail mounting possible
yes
Rated control supply voltage DC
24 V
Degree of protection
IP20 (Ip: IP20)
Supporting protocol for SERCOS
no
Supporting protocol for INTERBUS-Safety
no
With short-circuit release
yes
Type of electrical connection of main circuit
Screw connection
Type of electrical connection for auxiliary- and control current circuit
Screw connection
Supporting protocol for AS-Interface Safety at Work
no
Supporting protocol for DeviceNet Safety
no
Supporting protocol for EtherNet/IP
no
Supporting protocol for Foundation Fieldbus
no
Supporting protocol for PROFINET CBA
no
Supporting protocol for PROFINET IO
no
Supporting protocol for PROFIsafe
no
Supporting protocol for SafetyBUS p
no
Voltage type for actuating
DC
Type of motor starter
Reversing starter
Rated operation power at AC-3, 230 V, 3-phase
7 kW
Rated power, 460 V, 60 Hz, 3-phase
15 kW
Rated power, 575 V, 60 Hz, 3-phase
15 kW
Rated operation current at AC-3, 400 V
32 A
Ambient temperature, upper operating limit
70 °C
Rated conditional short-circuit current, type 2, 400 V
50000 A
Rated conditional short-circuit current, type 2, 230 V
50000 A
Rated conditional short-circuit current, type 1, 480 Y/277 V
10000 A
Rated conditional short-circuit current, type 1, 600 Y/347 V
4000 A
