Ultra ReVerser Block Side Mounting 32A 24V DC
Schneider Electric

Ultra ReVerser Block Side Mounting 32A 24V DC

Ideal part number SCHLU6MB0BL Manufacturer number LU6MB0BL Barcode 3389110106183
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

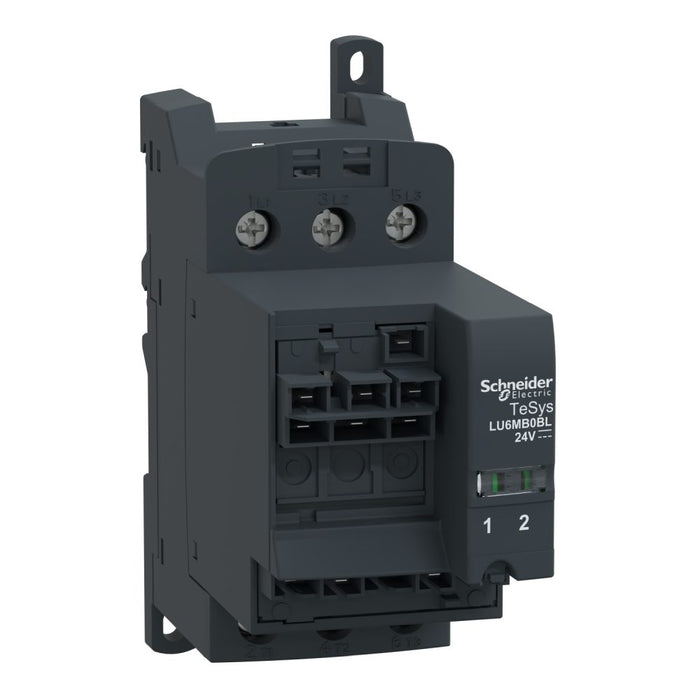

Ultra ReVerser Block Side Mounting 32A 24V DC

TeSys U reversing module for side mounting, for the constitution of TeSys U reversing starter controllers. It provides reverse power contacts, coil control with interlocking capabilities to be supplied with 24 DC. To be used with an advanced power base LUB120, LUB320, or LUB380 equipped with a Control Unit LUC*BL type. To be associated with an assembling connector LU9MR1 and a control terminal block LU9M1 to complete the side mounting. Green Premium compliant (RoHS/REACh).

Technical specifications

Function
Reversing safety
Rated operation power at AC-3, 400 V
18 kW
Rated operation current Ie at AC-3, 400 V
38 A
Rated control supply voltage DC
24 V
Degree of protection
IP20 (Ip: IP20)
Type of electrical connection of main circuit
Screw connection
Voltage type for actuating
DC
