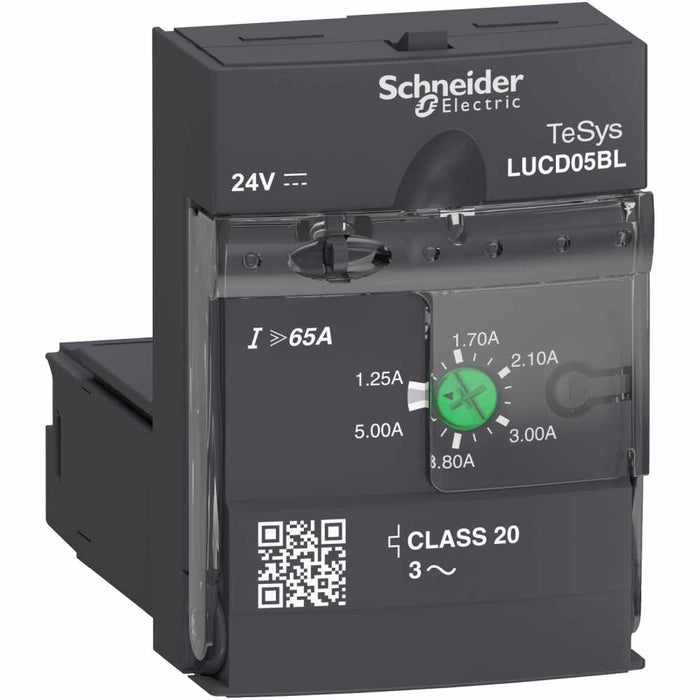

Advanced Motor Control Unit 3Ph 1.25-5A 24VDC
Schneider Electric

Advanced Motor Control Unit 3Ph 1.25-5A 24VDC

Ideal part number SCHLUCD05BL Manufacturer number LUCD05BL Barcode 3389110364811
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Advanced Motor Control Unit 3Ph 1.25-5A 24VDC

TeSys U control and diagnostic unit to be inserted in advanced power bases LUB120, LUB320, LUB380 to form a TeSys U starter controller, for 3-phase motor applications up to 1.5kW@400V. It provides full protection to motors with a rated current Ir 1.25-5A (Ir adjustable), overload tripping class 20, short circuit at 13 x Irmax, overcurrent at 14.2 x Ir, phase loss, insulation fault (protection of equipment only). It provides a thermal overload alarm to be used locally using a LUFDA module or remotely using a LULC module, and a test push button for overload simulation. To be used with a 24V DC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).

Technical Specifications

Rated permanent current Iu
5 A
Number of poles
3
Short-circuit release function
Undelayed
Overload release current setting
1.25 A
