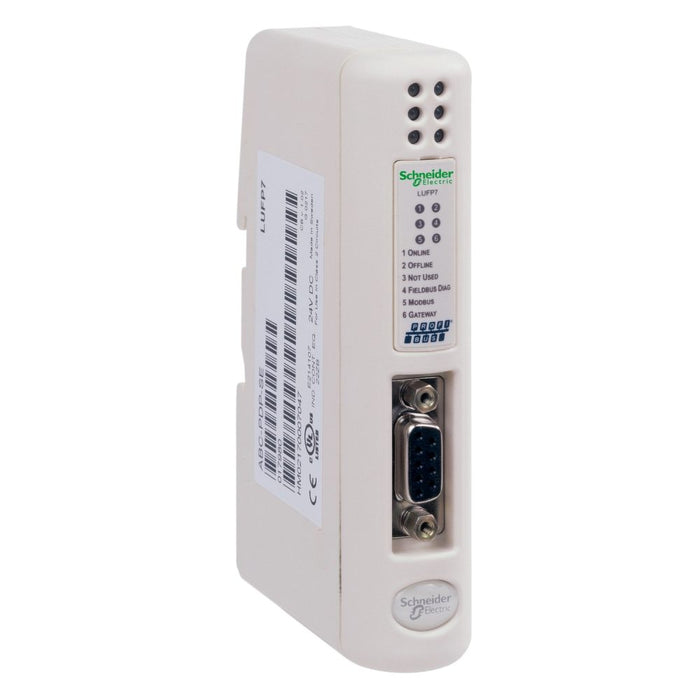

Profibus DP/Modbus Com Gateway 1 Prof SUB-D9 1 RJ45 Modbus
Schneider Electric

Profibus DP/Modbus Com Gateway 1 Prof SUB-D9 1 RJ45 Modbus

Ideal part number SCHLUFP7 Manufacturer number LUFP7 Barcode 3389110109368
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Profibus DP/Modbus Com Gateway 1 Prof SUB-D9 1 RJ45 Modbus

TeSys U communication gateway for interfacing groups of up to 8 x TeSys U starter controllers connected on the same Modbus serial link to a Profibus DP field bus. On front side, it provides the Profibus DP connector, and device and communication LED status. It provides on the bottom 2 x RJ45 connectors for Modbus serial link and PC link, a connector for a 24V DC external power supply. It can be used for interfacing ATS48 soft starters and ATV31 variable speed drives to Profibus DP. To be clipped on a 35mm DIN rail. Green Premium compliant (RoHS/REACh).

Technical specifications

Suitable for safety functions
no
Voltage type
DC (Supply voltage: DC)
Supporting protocol for LON
no
Supporting protocol for TCP/IP
no
Supporting protocol for ASI
no
Supporting protocol for PROFIBUS
yes
Supporting protocol for CAN
no
Supporting protocol for INTERBUS
no
Supporting protocol for KNX
no
Supporting protocol for MODBUS
yes
Supporting protocol for Data-Highway
no
Supporting protocol for DeviceNet
no
Supporting protocol for SUCONET
no
Supporting protocol for other bus systems
no
With potential separation
yes
Rail mounting possible
no
Explosion safety category for gas
None
Explosion safety category for dust
None
Fieldbus connection over separate bus coupler possible
no
System accessory
no
Appendant operation agent
no (Ex ia: no, Ex ib: no)
Degree of protection
IP20 (Ip: IP20)
Supporting protocol for SERCOS
no
Supporting protocol for INTERBUS-Safety
no
Front built-in possible
yes
Rack-assembly possible
no
Wall mounting/direct mounting
no
Radio standard Bluetooth
no
Radio standard WLAN 802.11
no
IO link master
no
Supporting protocol for AS-Interface Safety at Work
no
Supporting protocol for DeviceNet Safety
no
Supporting protocol for EtherNet/IP
no
Supporting protocol for Foundation Fieldbus
no
Supporting protocol for PROFINET CBA
no
Supporting protocol for PROFINET IO
no
Supporting protocol for PROFIsafe
no
Supporting protocol for SafetyBUS p
no
Supply voltage DC
24 V
Radio standard GPRS
no
Radio standard GSM
no
Radio standard UMTS
no
