Direct Rotary Handle ComPacT NSX100/160/250 Blk Handle IP40
Schneider Electric

Direct Rotary Handle ComPacT NSX100/160/250 Blk Handle IP40

Ideal part number SCHLV429337T Manufacturer number LV429337T Barcode 3606482003866
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

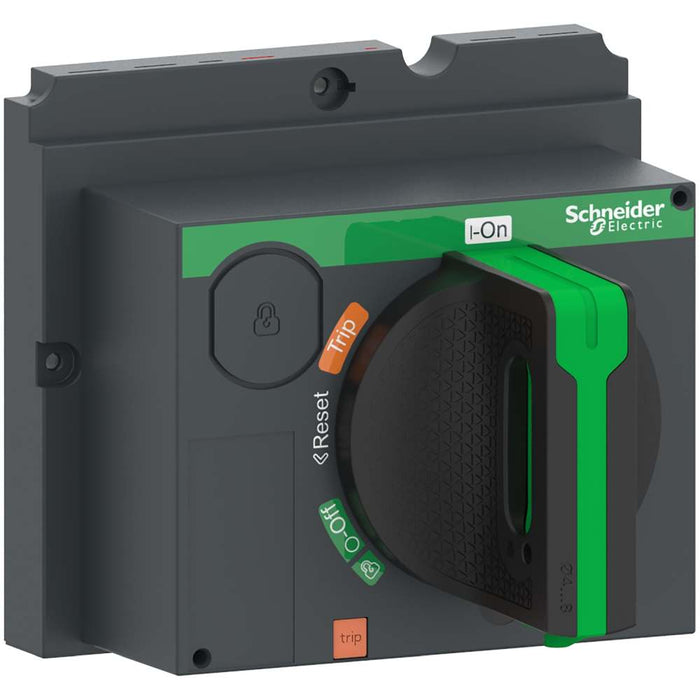

Direct Rotary Handle, ComPacT NSX100/160/250, Black Handle, IP40

It is a direct rotary handle for ComPacT NSX 100/160/250, PowerPact Multistandard H/J frames and EasyPact CVS 100/160/250 devices. It is suitable for isolation and it is used for standard applications. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a standard black handle. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Technical specifications

Colour
Black
Suitable for emergency stop
no
With extension shaft
no
Suitable for power circuit breaker
yes
Suitable for switch disconnector
no
