Ext Rotary Handle NSX100-250 Red Handle Shaft 185-600 IP40
Schneider Electric

Ext Rotary Handle NSX100-250 Red Handle Shaft 185-600 IP40

Ideal part number SCHLV429339T Manufacturer number LV429339T Barcode 3606482003873
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

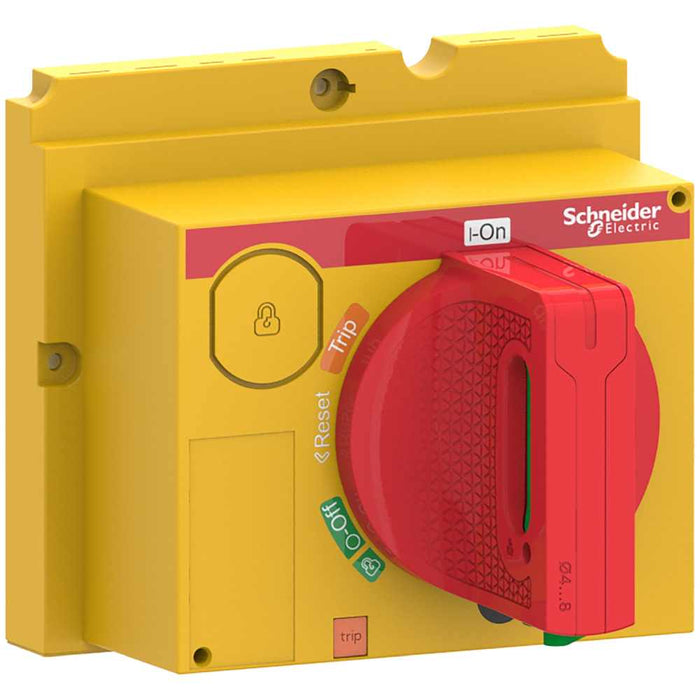

Extended Rotary Handle, NSX100/160/250, Red Handle with Yellow Front, Shaft length 185-600mm, IP40

It is a direct rotary handle for ComPacT NSX 100/160/250 and PowerPact Multistandard H/J frames devices. It is suitable for isolation and it is used for machine tool control. It maintains the access to trip unit settings and to the push to trip button. It is equipped with a red handle on yellow front. There is an indication of the three device positions O (OFF), I (ON) and tripped. The degrees of protection are IP40 and IK07. This rotary handle is padlockable in the OFF position using 1 to 3 padlocks not supplied (shackle diameter 5 to 8mm). As an option, it is possible to install a Ronis or Profalux keylock on the base of the handle to obtain the same function as with a padlock.

Technical specifications

Colour
Red
Suitable for emergency stop
no
With extension shaft
no
Suitable for power circuit breaker
yes
Suitable for switch disconnector
no
