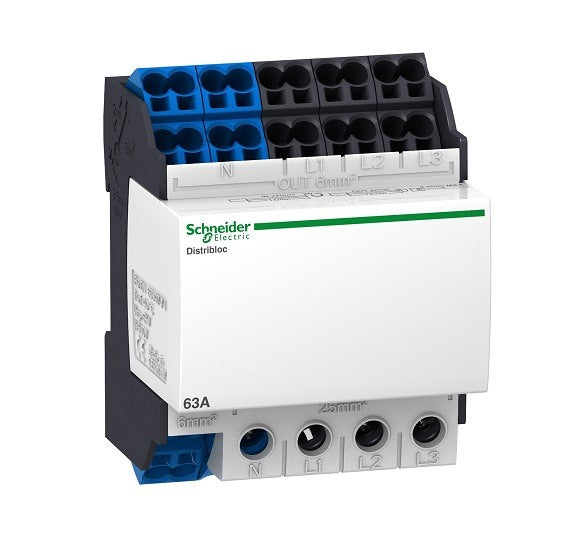

Linergy DX Distribution Block 4P 63A 4M 24-Hole QC Bottom

Linergy DX Distribution Block 4 pole 63A 4M 24-Hole QC Bottom

This Linergy DX distribution block can be installed on a DIN rail. It is compatible with Prisma, PrismaSeT, Pragma enclosures ans Spacial enclosures. It is dedicated to 4P installation. It provides tunnel type terminal for the supply circuit with a cable cross section of 16mm² for flexible cables or 25mm² for rigid cables. It provides 24 holes for quick connections at the botom of the product. 12 spring terminal outgoers for phase and 12 spring terminal outgoers for neutral are available for distribution part. The allowed cable cross section is comprised betrween 2.5mm² and 6mm² for flexible and rigid cables. The Ue rated operational voltage is 440VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The In rated operational current is 63A. It provides IPxx B degree of protection. Its resistance to incandescent wire is 960°C. It is intented for residential or small commercial buildings. Its width takes 4 modules of 18mm. Its weight is 290g. It complies with IEC60947-7-1 and IEC61439-1 standards.
