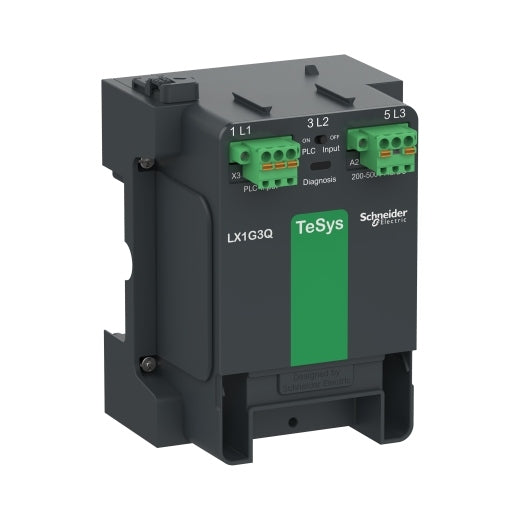

Tesys Control Module for 3P G115/225 Advanced 24-48VAC/DC
Schneider Electric

Tesys Control Module for 3P G115/225 Advanced 24-48VAC/DC

Ideal part number SCHLX1G3QBEEA Manufacturer number LX1G3QBEEA Barcode 3606481946164
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Tesys Control Module for 3P G115/225 Advanced 24-48VAC/DC

It is a 24-48V AC/DC control module for 3 poles TeSys Giga 115-225 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.

Technical specifications

Rated control supply voltage AC 50 Hz
24...48 V
Rated control supply voltage AC 60 Hz
48...24 V
Rated control supply voltage DC
24...48 V
Voltage type for actuating
AC/DC
