Tesys Control Module for 3P G115/225 Standard 48-130VAC/DC
Schneider Electric

Tesys Control Module for 3P G115/225 Standard 48-130VAC/DC

Ideal part number SCHLX1G3QEHEN Manufacturer number LX1G3QEHEN Barcode 3606481946287
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

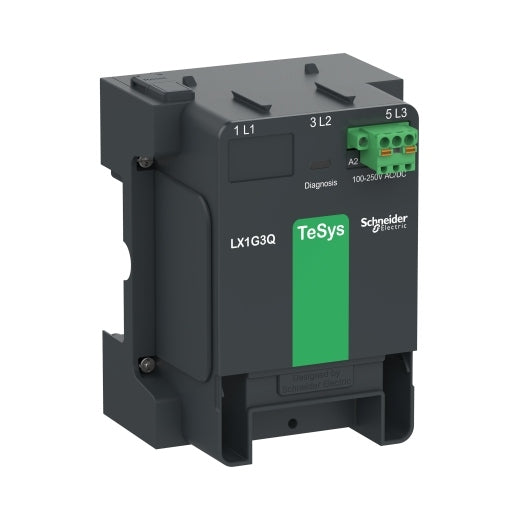

Tesys Control Module for 3P G115/225 Standard 48-130VAC/DC

It is a 48-130V AC/DC control module for 3 poles TeSys Giga 115-225 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.

Technical specifications

Rated control supply voltage AC 50 Hz
130...48 V
Rated control supply voltage AC 60 Hz
48...130 V
Rated control supply voltage DC
130...48 V
Voltage type for actuating
AC/DC
