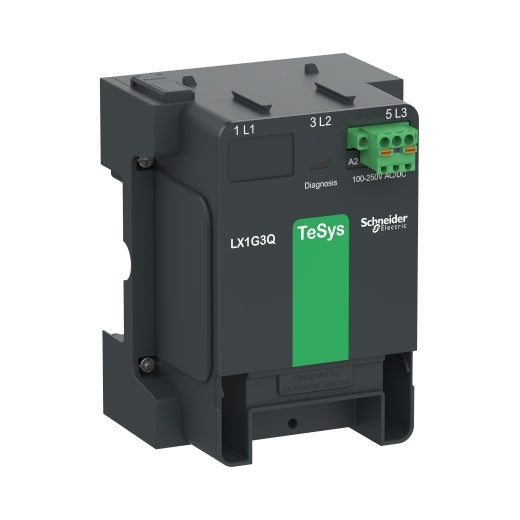

Tesys Control Module for 3P G115/225 Standard 100-250VAC/DC
Schneider Electric

Tesys Control Module for 3P G115/225 Standard 100-250VAC/DC

Ideal part number SCHLX1G3QKUEN Manufacturer number LX1G3QKUEN Barcode 3606481946294
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Tesys Control Module for 3P G115/225 Standard 100-250VAC/DC

It is a 100-250V AC/DC control module for 3 poles TeSys Giga 115-225 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit, pole status and diagnostic signaling circuits. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.

Technical specifications

Rated control supply voltage AC 50 Hz
100...250 V
Rated control supply voltage AC 60 Hz
100...250 V
Rated control supply voltage DC
100...250 V
Voltage type for actuating
AC/DC
