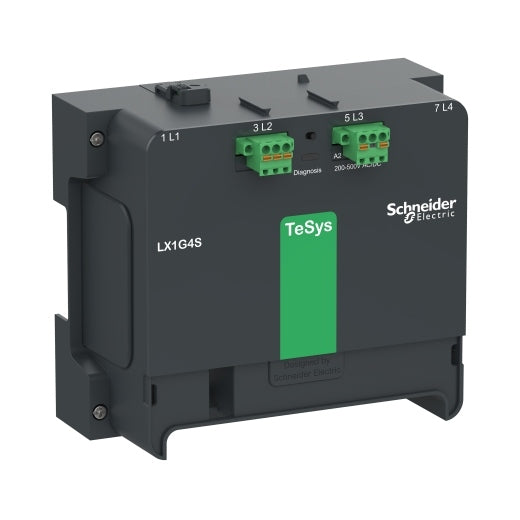

Tesys Control Module for 4P G265/300 Advanced 200-500VAC/DC
Schneider Electric

Tesys Control Module for 4P G265/300 Advanced 200-500VAC/DC

Ideal part number SCHLX1G4RLSEA Manufacturer number LX1G4RLSEA Barcode 3606481946416
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

Tesys Control Module for 4P G265/300 Advanced 200-500VAC/DC

It is a 200-500V AC/DC control module for 4 poles TeSys Giga 265-330 contactor (advanced version). Coil designed for less energy consumption and wider voltage band-width, connection by spring terminal. It allows contactor operation with high AC-3 operating rates until 600 cycles/hour and environments until 60°C. Control module has connectors for connecting the coil control A1, A2 circuit & PLC output control, pole status and diagnostic signaling circuits. Local and Remote Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It is accessible from the front and maintained with very low down times. Unique QR code provides quick access to complete product data.

Technical specifications

Rated control supply voltage AC 50 Hz
200...500 V
Rated control supply voltage AC 60 Hz
200...500 V
Rated control supply voltage DC
200...500 V
Voltage type for actuating
AC/DC
