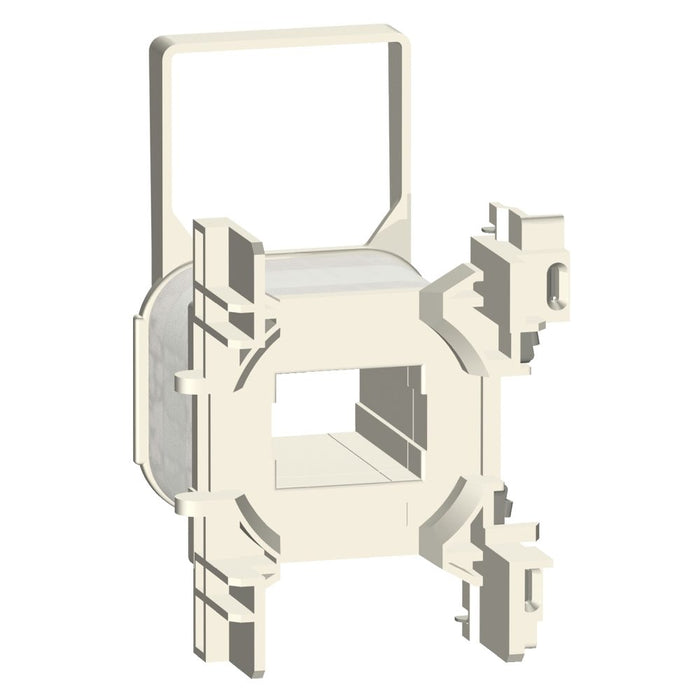

TeSys Deca LXD3 Coil 48V 50/60Hz for 40/65A Contactor
Schneider Electric

TeSys Deca LXD3 Coil 48V 50/60Hz for 40/65A Contactor

Ideal part number SCHLXD3E7 Manufacturer number LXD3E7 Barcode 3389119410335
Request a quote for this product

Enter details to request a quote
Need help choosing the right product? Talk to your local team

Product details

TeSys Deca - contactor coil - LXD3 - 48 V AC 50/60 Hz for 40… 65 A contactor

TeSys D replacement coil 48V AC 50/60Hz, for TeSys D contactors. To be used with 3 and 4-pole contactors LC1 D40A to D65A and LC1 DT60A, DT80A. It operates in the voltage limits 0.8-1.1 Uc (50Hz), 0.85-1.1 Uc (60Hz) and environments until 60°C Green Premium compliant (RoHS/REACh).

Technical specifications

Rated control supply voltage AC 50 Hz
48 V
Rated control supply voltage AC 60 Hz
48 V
Voltage type for actuating
AC
